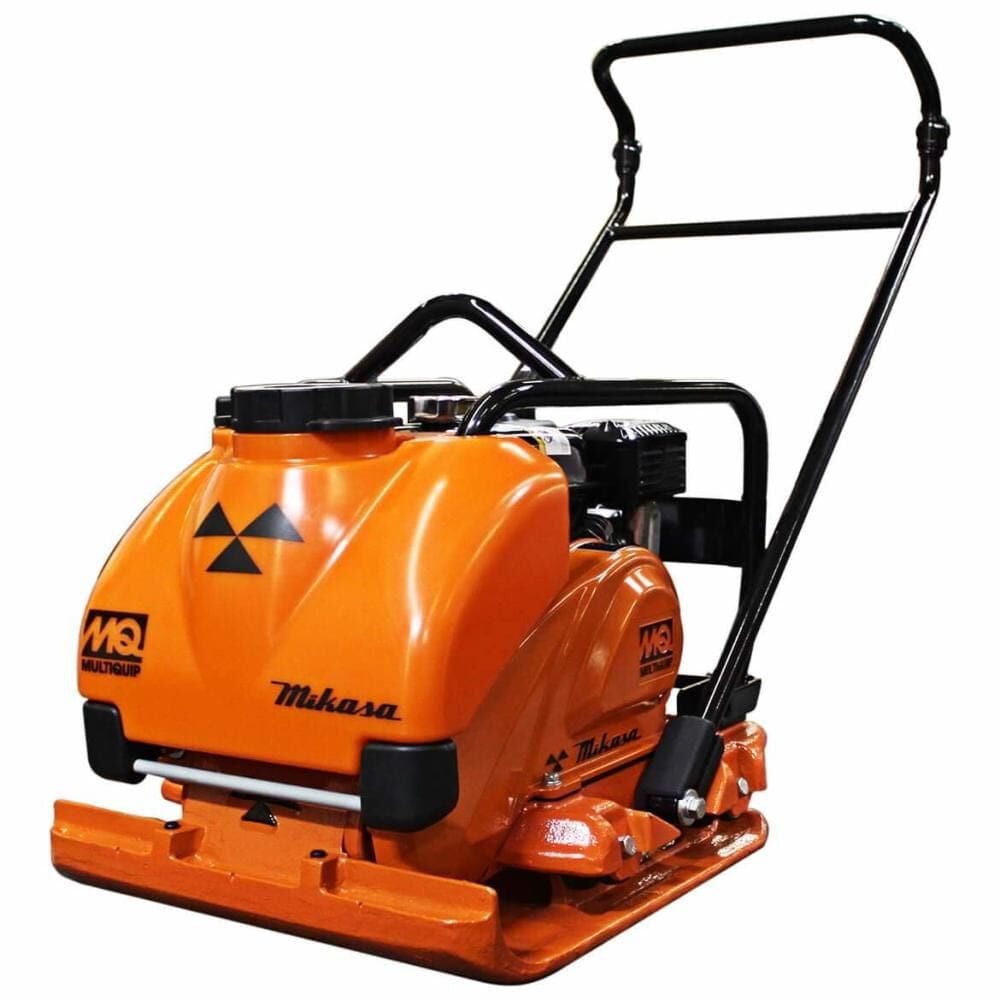

Multiquip MVC88VTHW 19.7" Plate Compactor

  • Sale
  • Regular price $2,149.00


The new MVC88 now features a single cast baseplate and eccentric housing to enhance plate durability, serviceability and performance.  An hour/tachometer to help measure runtime and engine rpm is now a standard feature.  The plate is even easier to transport with the new wheel kit design.  All this combined with an advanced anti-vibration handle make the MVC88 the newest and most technically advanced plate compactors on the market.

Features:

  • Reliable engine with Honda GX160 offering easy start-up and low oil shutdown for durability.
  • Cyclonic pre-cleaner captures most airborne contaminants for engine protection and extended service life.
  • Single cast baseplate and eccentric housing lowers center of gravity and increases travel speed by 12% for greater productivity.
  • Hour/tachometer measures runtime and engine rpm.
  • Tubular steel roll bar protects engine components and provides central lifting point.
  • Sealed belt cover keeps dirt and rocks out extending belt life.
  • Open base plate design makes for easier removal of dirt and rock build-up.
  • Cog-tooth belt drive enables longer life compared to conventional V-belts.
  • Removable water tank can easily be refilled and is largest in class with 13.7 quart capacity.

Unit Specifications:

  • Centrifugal Force              3372 lbf
  • Exciter Speed                    6000 VPM
  • Plate Size                           19.7 x 20.7 in
  • Max Forward Speed           82 FPM
  • Fuel Consumption              0.31 GPH
  • Water Tank Capacity          13.7 qt

Dimensions & Weights:

  • Overall Length                   41.75 in
  • Overall Width                    19.75 in
  • Overall Height                    37 in
  • Shipping Dimensions         38 x 22 x 29 in
  • Operating Weight              229 lb
  • Shipping Weight                225 lb

    Call 281 351-2211 for availability and delivery options.
