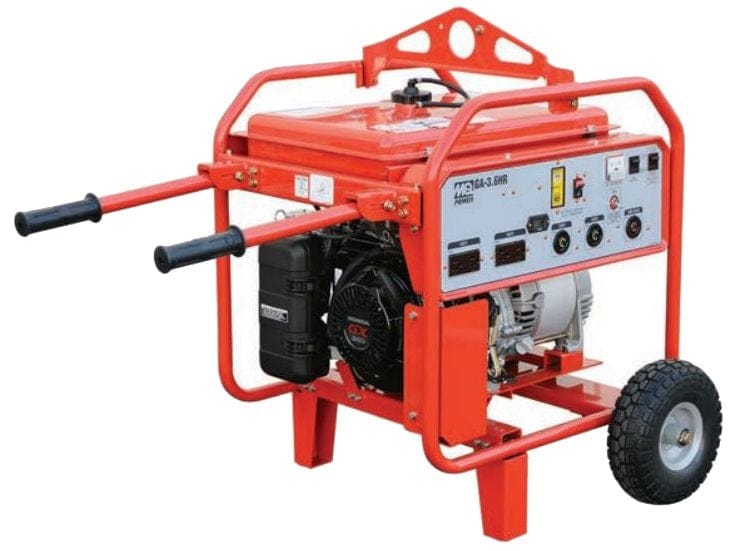

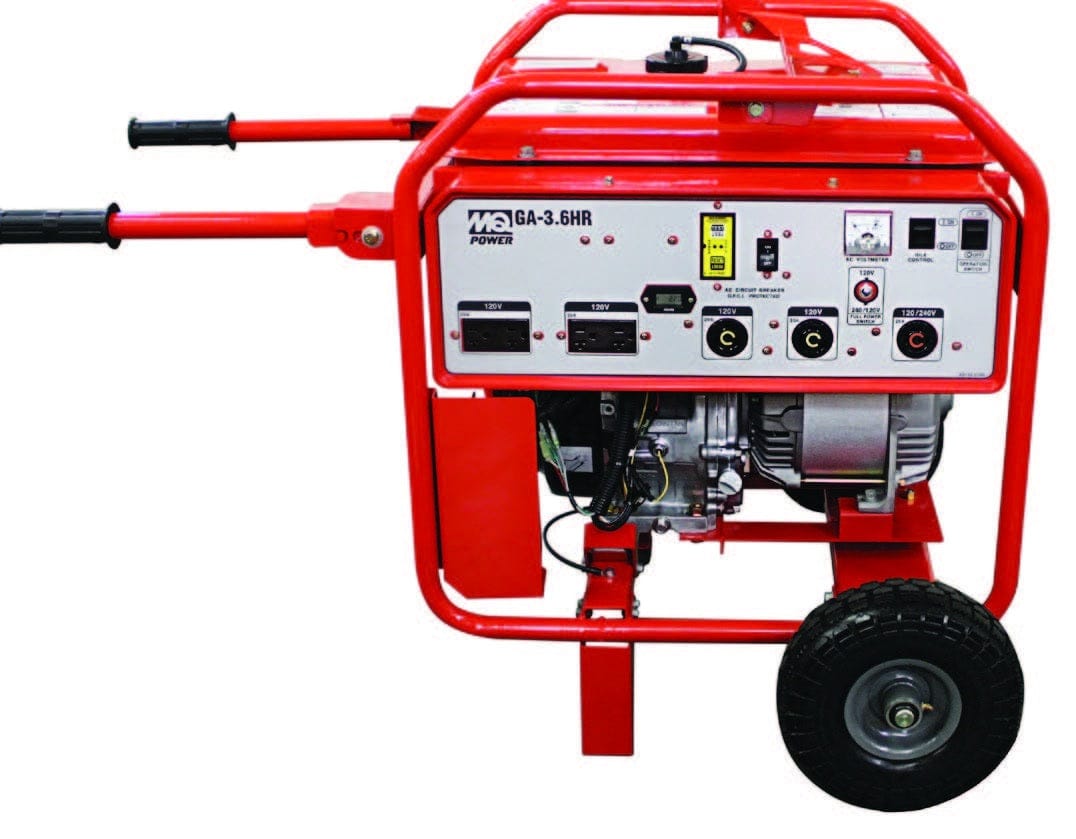

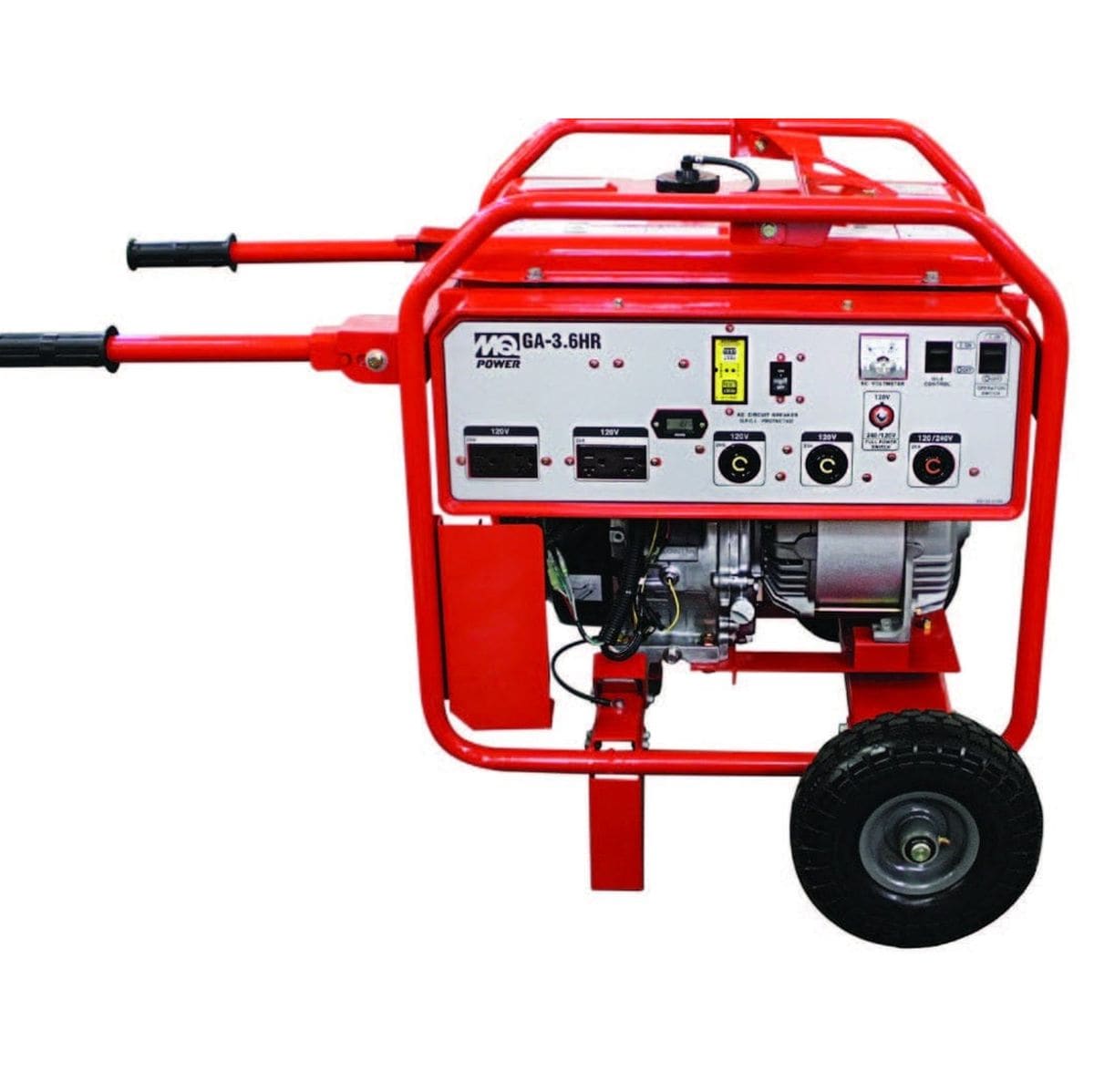

MultiQuip Generator (GA36HR)

The Multiquip GA36HR gerator is an all-around performer that delivers 120/240V output in a mid-size package. HR models come standard with a GFCI protected main breaker, hour meter, wheel kit and automatic idle control.

Features:

• Lightweight and compact design for easy transport
• 100% copper windings for maximum conductivity
• Alternator design eliminates maintenance by removing brushes and slip rings
• Heavy-duty 1-inch (25 mm) steel pipe frame and shock mounts protect the generator
• Includes a wheel kit and folding lifting bale as standard equipment
• Powered by Honda GX240 engine with low-oil shutdown and idle control
• Full panel GFCI protection - OSHA and NEC compliant

Unit Specifications:

• Alternator Design             Brushless
• Frequency                         60 hz
• Phase                                Single Phase
• Voltage                             120/240 V
• Sound level at 30 ft          76 dBA
• Fuel Tank Capacity            5 gal

Power Generation  (Max/Continuous):

• Watts    3600 W / 3200 W
• Amps at 120V     30 A  / 26.6 A
• Amps at 240V     15 A / 13.3 A

Receptacles & Circuit Breakers:

• Main Circuit Breaker       21 A
• Number of Poles              2
• 1 Receptacle of Each:      L5-20R 125V T-Lock 20A, L5-30R 125V T-Lock 30A, L14-20R 125/250V T-Lock 20A
• 2 Receptacle of Each:      5-20R 125V GFCI 20A

Dimensions & Weights:

• Overall Length   25.5 in
• Overall Width    22 in
• Overall Height   24 in
• Operating Weight            215.73 lb
• Shipping Weight               174 lb

Engine Specifications:

• Engine Make/Model    Honda GX-240 (Recoil Only)
• Start Method               Recoil
• Engine Power              7.9 HP
• Engine RPM                3600
• Fuel Type                    Gasoline
