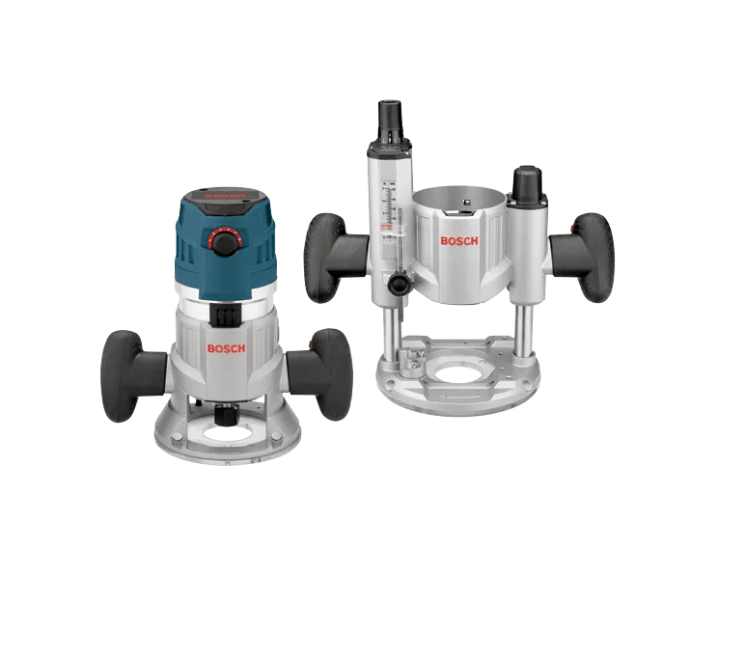

Two Bosch power tools on a plain white background: a teal and silver plunge router with black wheels on the left, and a silver vertical router bit holder with black adjustment knobs on the right.
Bosch

Bosch 15 Amp 2.3 HP 10,000 to 25,000 RPM Electronic Modular Router System (MRC23EVSK-RT)

Only 2 left
SKU: MRC23EVSK-RT
$271.00 USD

Description

Bosch logo in red with black lettering on a white background, modern and clearly designed.

2.3 HP VS Router Combo Kit

The Bosch MRC23EVSK-RT is a factory-reconditioned 15 Amp, 2.3 HP electronic modular router system designed for professional woodworking, cabinetmaking, trim carpentry and commercial fabrication. It combines fixed-base and plunge-base routing capability with variable-speed operation from 10,000 to 25,000 RPM for controlled material removal across a wide range of routing applications.

Best Used For

  • Cabinetmaking and Furniture: Perform edge forming, profiling, joinery and template routing with either the fixed or plunge base.
  • Trim Carpentry: Use controlled depth adjustment for door, countertop, molding and other woodworking applications.
  • Commercial Woodworking: Switch between fixed and plunge configurations for routing, mortising, pattern work and general material shaping.

Key Performance & Safety Features

  • 2.3 HP Maximum Tool: The 15 Amp motor provides substantial power for demanding professional routing applications.
  • Variable 10,000 to 25,000 RPM: Adjustable speed helps match router output to the bit, material and application.
  • Dual-Base Modular System: Includes both fixed and plunge router bases, allowing the motor to be quickly configured for different routing tasks.
  • Precision Plunge Adjustment: The plunge base features smooth plunge action, a spring-lock plunge lever and depth rod for controlled depth settings.
  • Microfine Depth Adjustment: Afterlock microfine adjustment provides precise depth changes at any plunge setting. The fixed base provides a continuous 1-5/8 inch adjustment range.
  • Soft Start: Helps reduce startup torque for smoother initial operation.
  • LED Work Lighting: Integrated always-on LED lighting improves visibility around the router bit and cutting area.
  • Trigger-Controlled Handles: Power switches are positioned in the base handles for convenient control during routing.

What's Included

  • 1 x Bosch 2.3 HP Electronic Router Motor
  • 1 x Fixed Router Base Assembly
  • 1 x Plunge Router Base Assembly
  • 1 x 1/2 Inch Self-Releasing Collet Chuck
  • 1 x 1/4 Inch Self-Releasing Collet Chuck
  • 1 x 24 mm Wrench
  • 1 x 16 mm Wrench
  • 1 x 1/8 Inch T-Handle Hex Wrench
  • 3 x Screws for Table Mounting
  • 1 x Carrying Case
  • 1 x Instruction Manual


Bosch MRC23EVSK-RT 2.3 HP Electronic Modular Plunge & Fixed-Base Router Kit Specifications

Parameter Specification
Model & Product Classification Bosch MRC23EVSK-RT | Factory Reconditioned 2.3 HP Electronic Modular Router System
Motor Rating & Output 15.0 AMPS / 2.3 Max Peak Horsepower (120V AC, 60 Hz Corded)
Operating Speed Range 10,000 – 25,000 RPM (Continuous Variable-Speed Control Dial)
Electronic Feedback Circuitry Constant Response™ Circuitry (Maintains RPM Under Heavy Cut Loads); Soft-Start Startup Torque Damping
Handle Trigger-Control System Power Switch Integrated Directly into Base Handles on Both Plunge and Fixed Bases with Lock-On Feature
Collet Capacity & Chuck Sizes Includes Both 1/4 in (6.35 mm) & 1/2 in (12.7 mm) Self-Releasing Precision Collets
Plunge Base Stroke & Afterlock™ MRP01 Plunge Base: 2-5/16 in (59 mm) Plunge Travel; Afterlock™ Microfine Bit-Depth Adjustment at Any Plunge Level
Fixed Base & Router Table Ready MRF01 Fixed Base: 1-5/8 in (41 mm) Continuous Microfine Depth; Above-Table Height Adjustment via Included T-Wrench
Lighting & Base Conversion Dual Always-On LED Worklights on Motor; 2-Stage Quick-Clamp System for Tool-Free Motor Base Transfers
Kit Inclusions MR23EVS Motor, MRP01 Plunge Base, MRF01 Fixed Base, 1/4" & 1/2" Collets, T-Wrench, Collet Wrenches & Hard Case
Tool Assembly Weights Motor Only: 8.6 lbs (3.9 kg) | Fixed Base Setup: 9.3 lbs (4.2 kg) | Plunge Base Setup: 12.6 lbs (5.7 kg)
Commercial Cabinetry & Precision Millwork Note:

Factory-reconditioned to meet original Bosch mechanical standards. Powered by a beefy 15.0 Amp (2.3 HP) motor, this modular system features the industry's only base-integrated trigger power switch, keeping power control right at the operator's fingertips without removing hands from the handles. Afterlock™ microfine depth adjustment allows dialing in cutter depth after locking the plunge lever, while above-table height adjustment turns the fixed base into a precision router table setup without an aftermarket lift.
