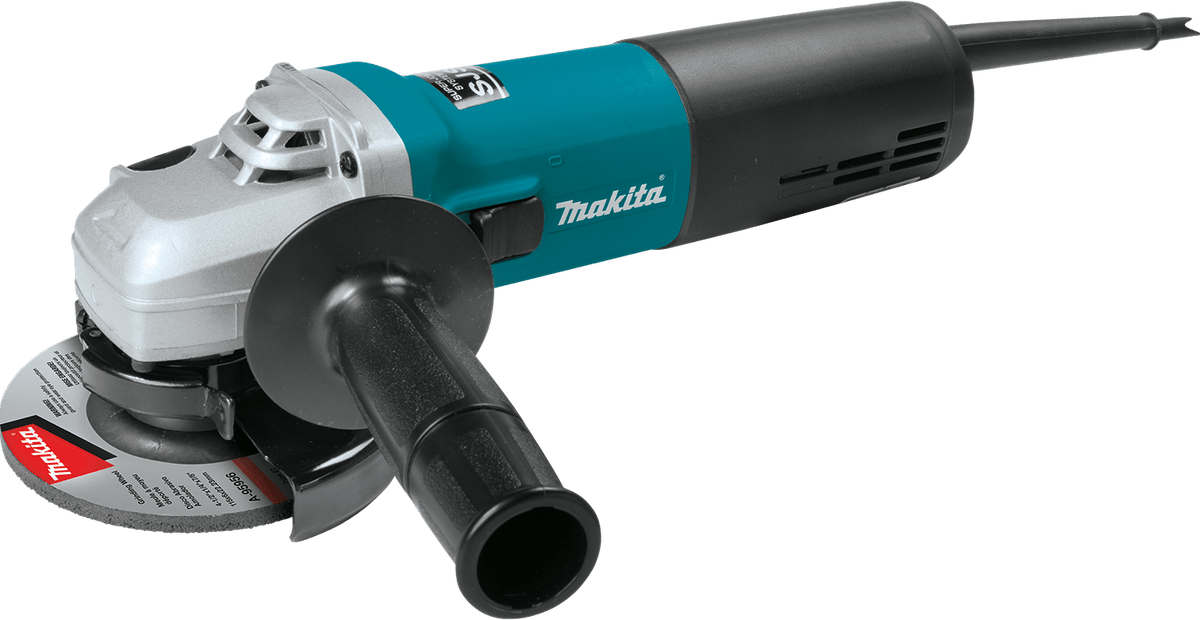

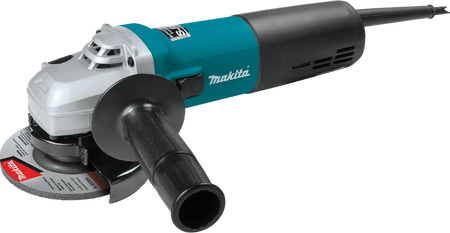

Makita angle grinder with a black and silver metal cutting wheel attachment, shown on a solid white background.

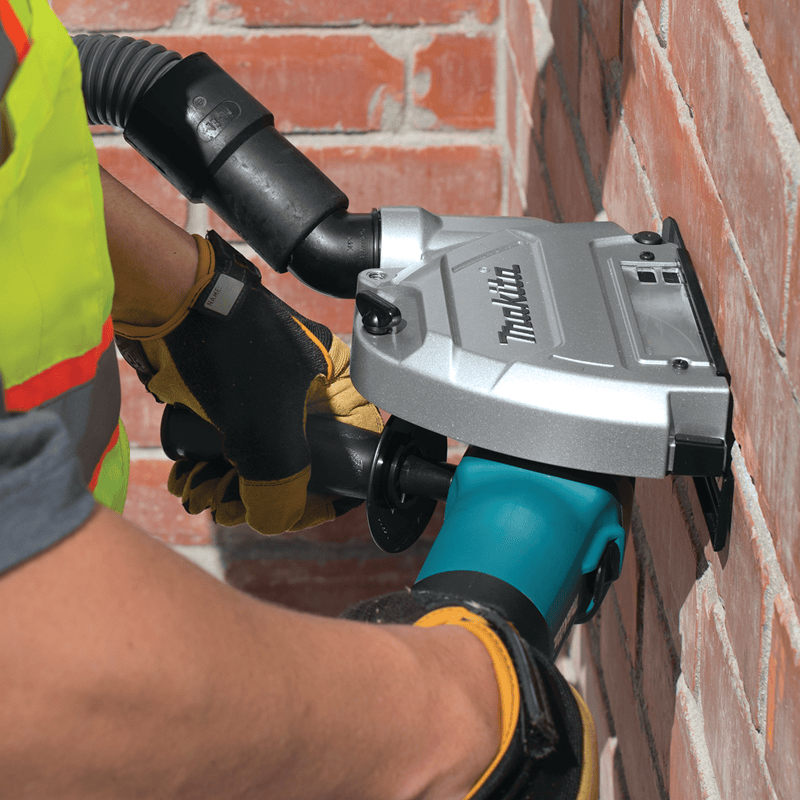

Person using a Makita angle grinder on a brick wall

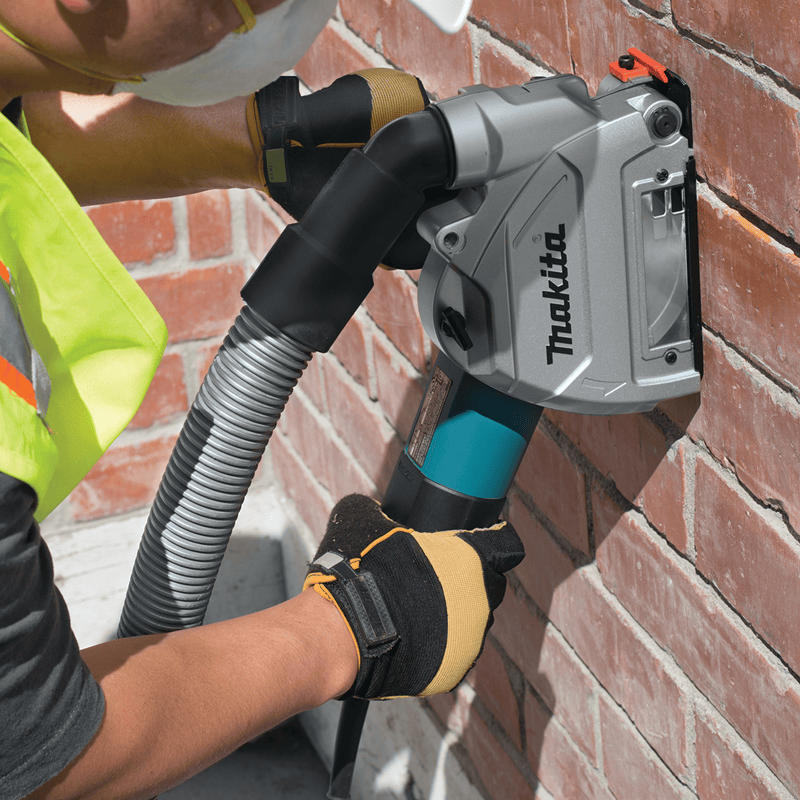

Person using a Makita power tool on a brick wall

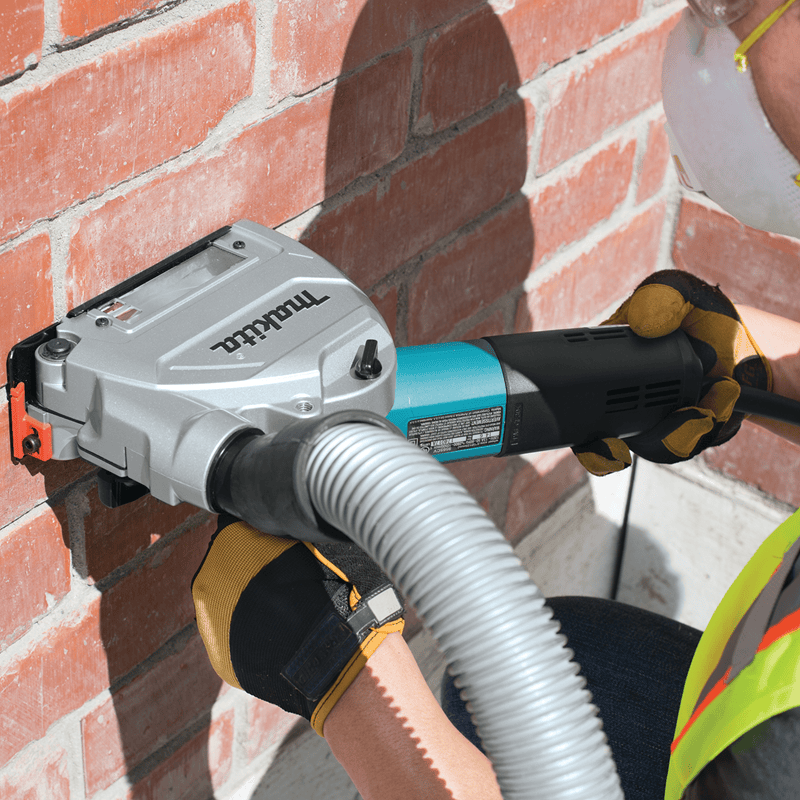

Person using a power tool against a brick wall

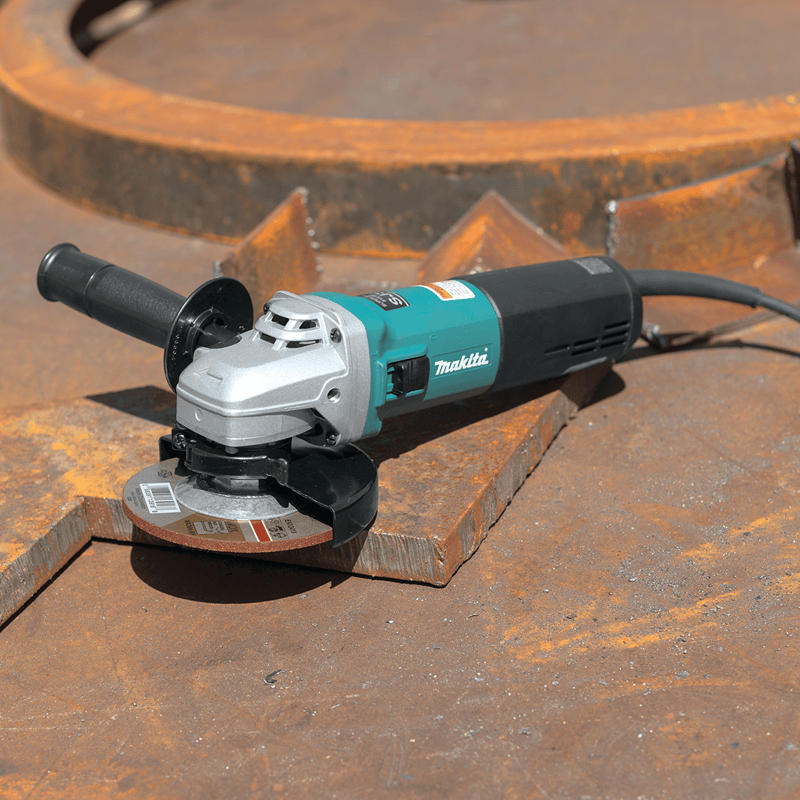

Makita angle grinder on a rusty metal surface

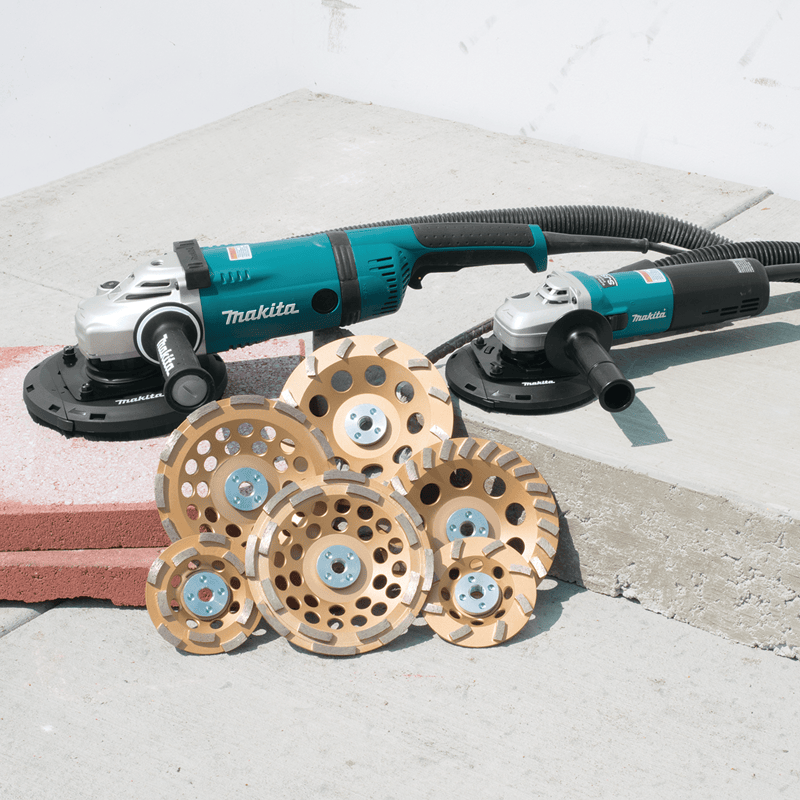

Makita angle grinder with sanding discs on a concrete surface
Makita angle grinder with a black and silver metal cutting wheel attachment, shown on a solid white background.
Person using a Makita angle grinder on a brick wall
Person using a Makita power tool on a brick wall
Person using a power tool against a brick wall
Makita angle grinder on a rusty metal surface
Makita angle grinder with sanding discs on a concrete surface
Makita

Makita 5 Inch 13 Amp Variable Speed SJS High-Power Angle Grinder Unit Only (9565CV)

In stock
SKU: 9565CV
$239.00 USD

Description


5" SJS™ High‑Power Angle Grinder

The Makita 9565CV is a 5-inch, 13 Amp variable-speed SJS high-power angle grinder designed for demanding grinding, polishing, and surface-preparation applications. Its variable speed, mechanical SJS clutch, constant speed control, and electronic current limiter make it well suited for professional welders, fabricators, masons, electricians, plumbers, automotive technicians, stone and tile workers, HVAC professionals, and general contractors.

Best Used For

  • Metal Fabrication & Welding: Grind welds, clean metal surfaces, and perform general fabrication work with variable speed control and 13 Amp power.

  • Masonry, Stone & Tile: Use controlled speeds for stone grinding, polishing, and surface preparation applications.

  • Commercial Maintenance & General Contracting: Handle demanding grinding and finishing tasks where speed control and motor protection are important.

Key Performance & Safety Features

  • 13 Amp Motor: High-power motor delivers variable speeds from 2,800 to 10,500 RPM for demanding professional applications.

  • SJS Mechanical Clutch: Super Joint System allows the drive shaft to slip if the grinding wheel binds, helping reduce damage to the gears and motor.

  • Variable Speed Control: Five-stage speed dial allows the operator to match grinder speed to the material and application.

  • Constant Speed Control: Electronic control automatically applies additional power to help maintain consistent speed under load.

  • Soft Start & Current Limiter: Soft-start technology suppresses startup reaction, while the electronic current limiter helps protect the motor from overload.

  • Dust-Resistant Construction: Labyrinth construction and zig-zag varnish help protect the motor and bearings from dust and debris during demanding applications.

What's Included

  • (1) Makita 9565CV 5-Inch SJS High-Power Angle Grinder

  • (1) 5-Inch x 1/4-Inch x 7/8-Inch INOX Grinding Wheel, 36 Grit

  • (1) 5-Inch Tool-Less Wheel Guard

  • (1) Lock Nut

  • (1) Lock Nut Wrench

  • (1) Inner Flange

  • (1) Side Handle


Makita 9565CV 5-Inch SJS Variable Speed Angle Grinder Specifications

Parameter Specification
Model & Product Classification Makita 9565CV | 5" SJS™ Variable Speed Industrial Angle Grinder
Wheel Diameter Capacity 5.0 in (12.7 cm) Grinding Wheel / Cut-Off Disc Capacity
Amperage & Power Output 13.0 Amp Motor Delivering Up to 1,440W Max Output
No-Load Speed Range 2,800 – 10,500 RPM (5-Stage Variable Speed Dial)
Spindle Thread Size 5/8 in - 11 UNC Standard Spindle Thread
Clutch & Drivetrain Protection SJS™ Mechanical Clutch System Prevents Motor & Gear Damage
Electronics & Speed Control Constant Speed Control, Electronic Current Limiter & Soft Start
Motor Dust Defense Labyrinth Construction & Zig-Zag Armature Varnish Sealing
Switch Type & Guard Slide Switch with Lock-On; Tool-Free Adjustable Wheel Guard
Net Tool Weight & UPC 5.3 lbs (2.4 kg); UPC: 088381033909
Industrial Stone Grinding & Variable Speed Note:

The Makita 9565CV combines a powerful 13-amp motor with a 5-stage variable speed dial (2,800–10,500 RPM), making it the premier choice for stone polishing, concrete surface prep, and metal fabrication. Equipped with Makita's exclusive SJS™ clutch system and electronic constant speed control, it maintains power under heavy load while protecting internal gears from bind-ups.
