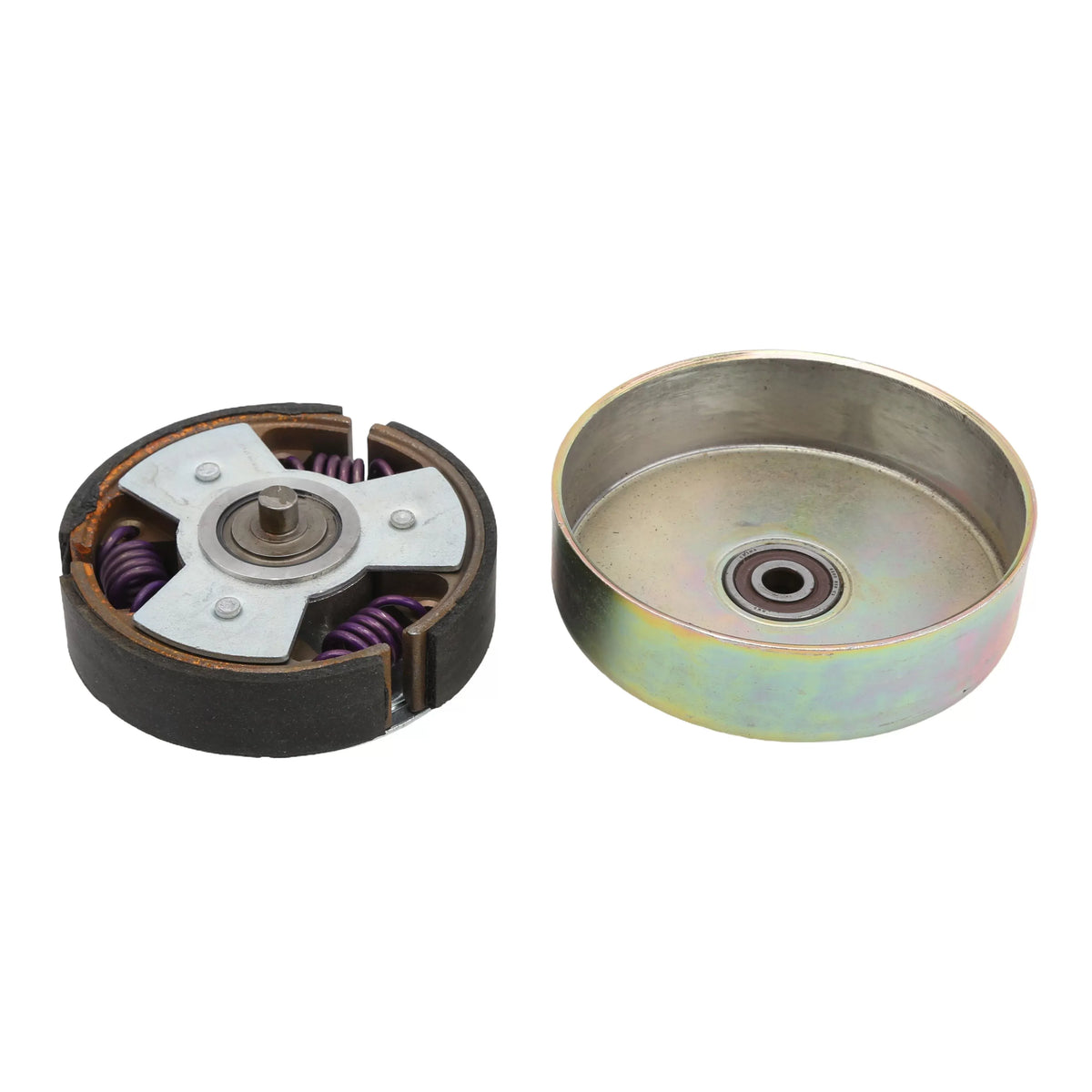

Little Beaver CCO-5# clutch assembly split open to show the spring-loaded fiber shoes alongside the steel drum interior.

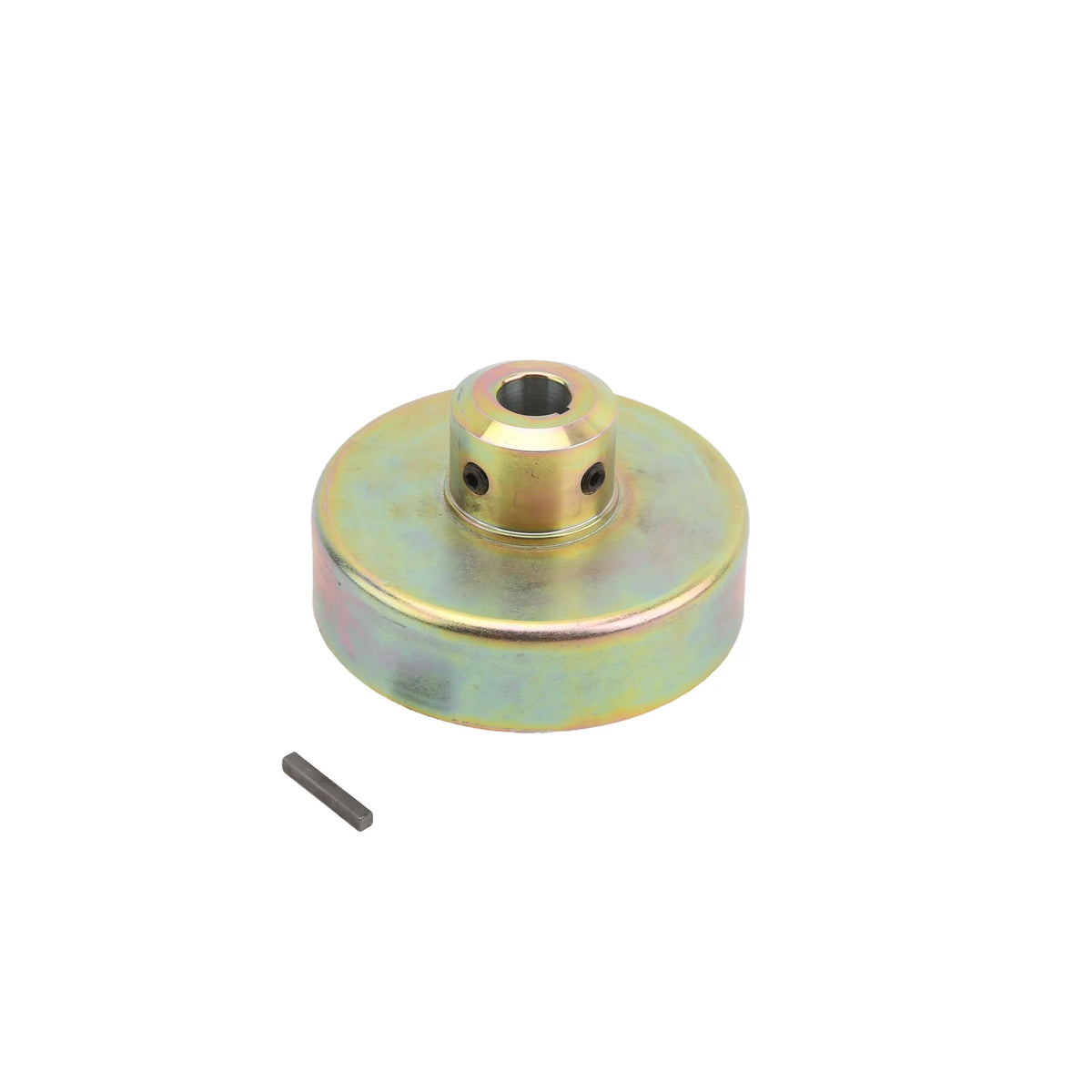

Little Beaver CCO-5# steel clutch drum showing the 3/4-inch bore engine shaft hub alongside the drive shaft key.

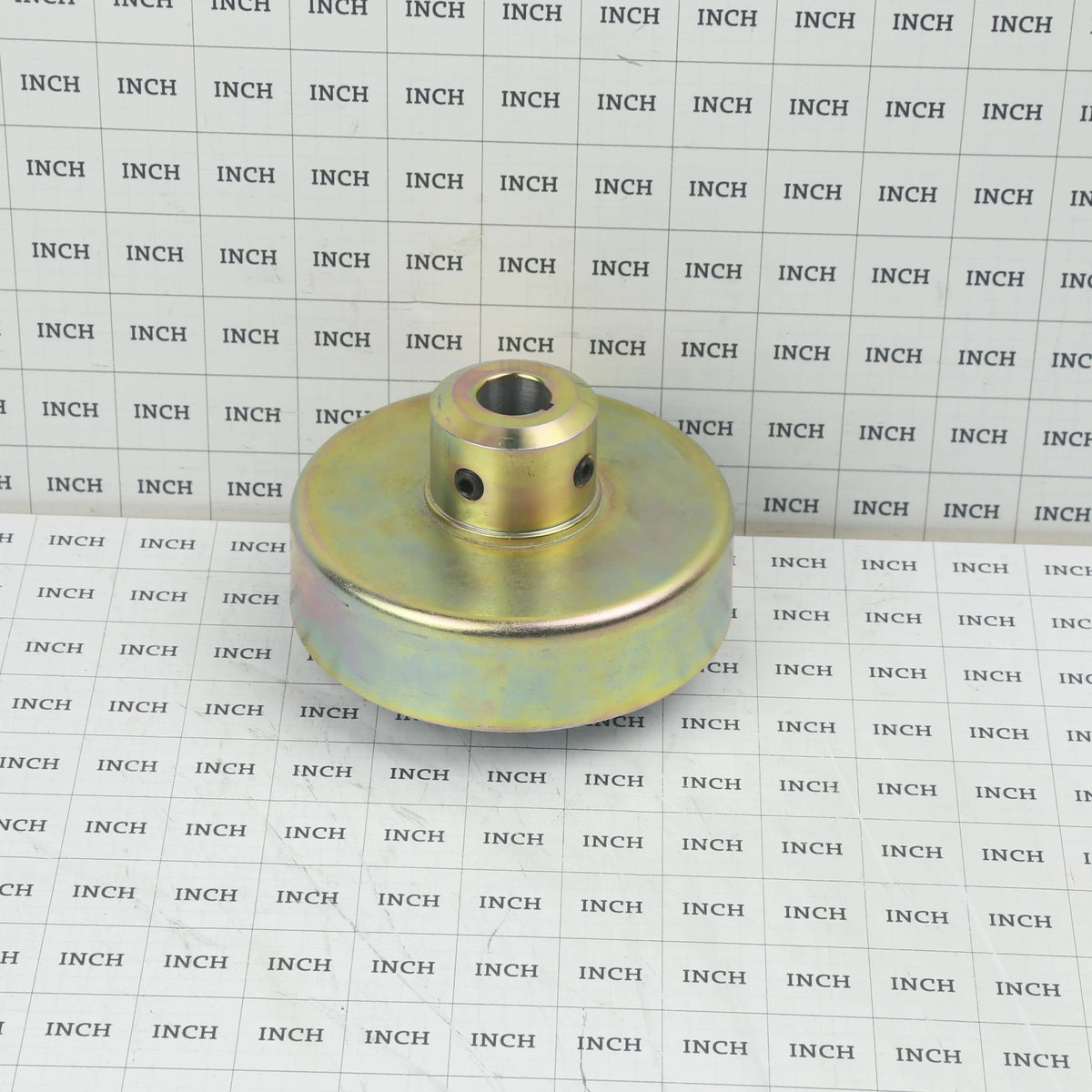

Little Beaver CCO-5# clutch drum measured on an inch grid scale showing the 3/4-inch engine bore collar height.

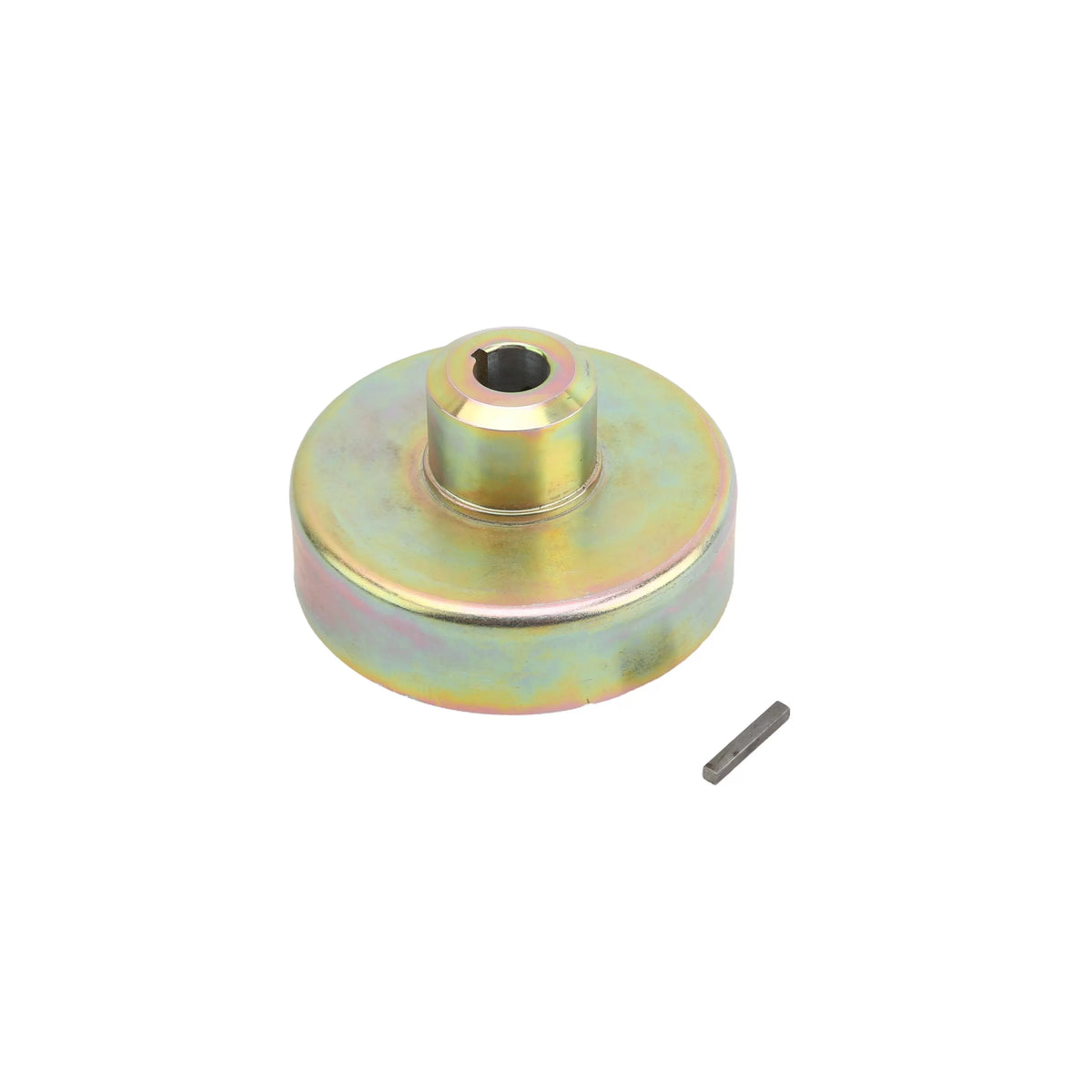

Top-down view of the Little Beaver CCO-5# clutch drum showing the 3/4-inch engine shaft bore and keyway slot.

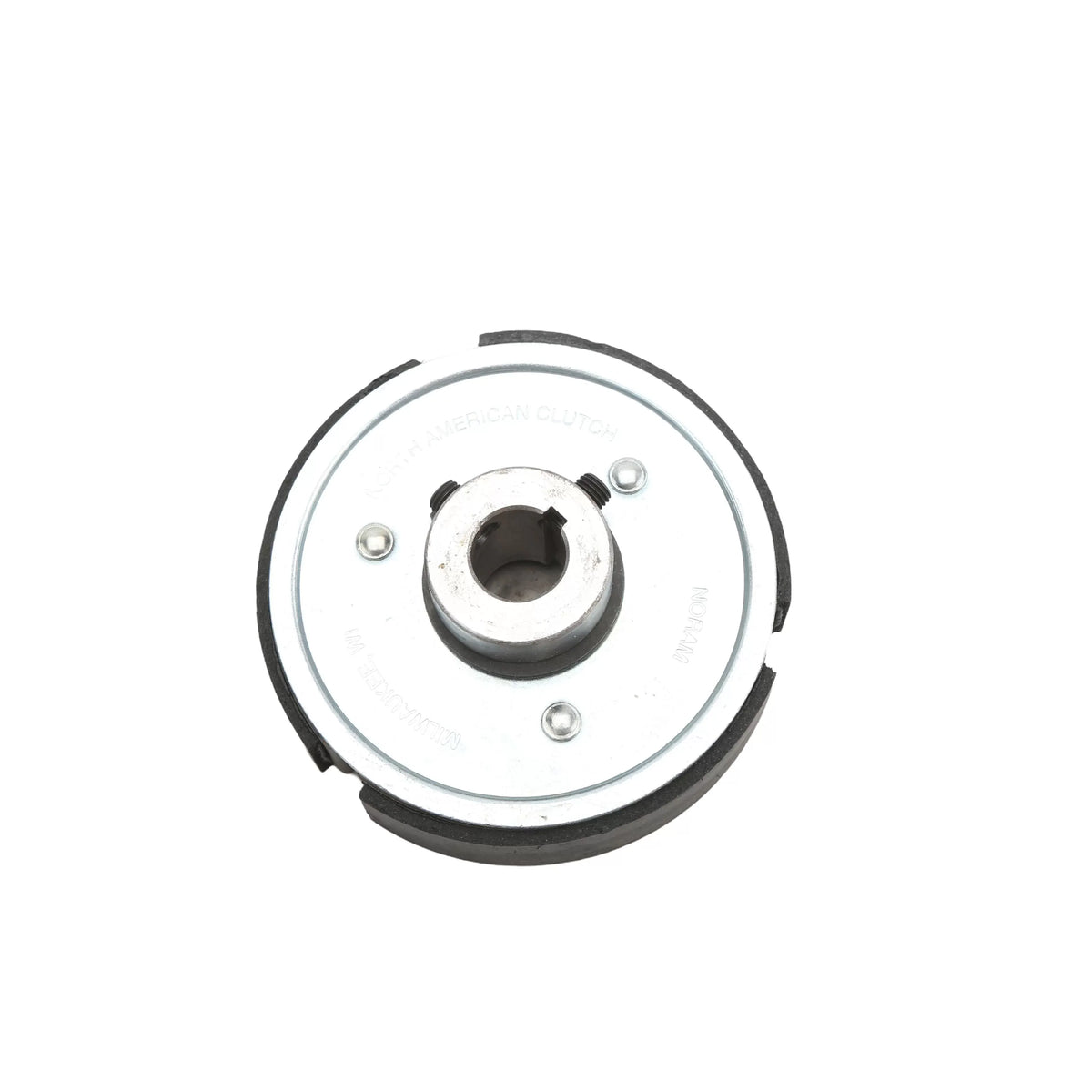

Top-down view of the Little Beaver CCO-5# fiber shoe hub showing the 3/4-inch engine shaft collar and keyway alignment slot.

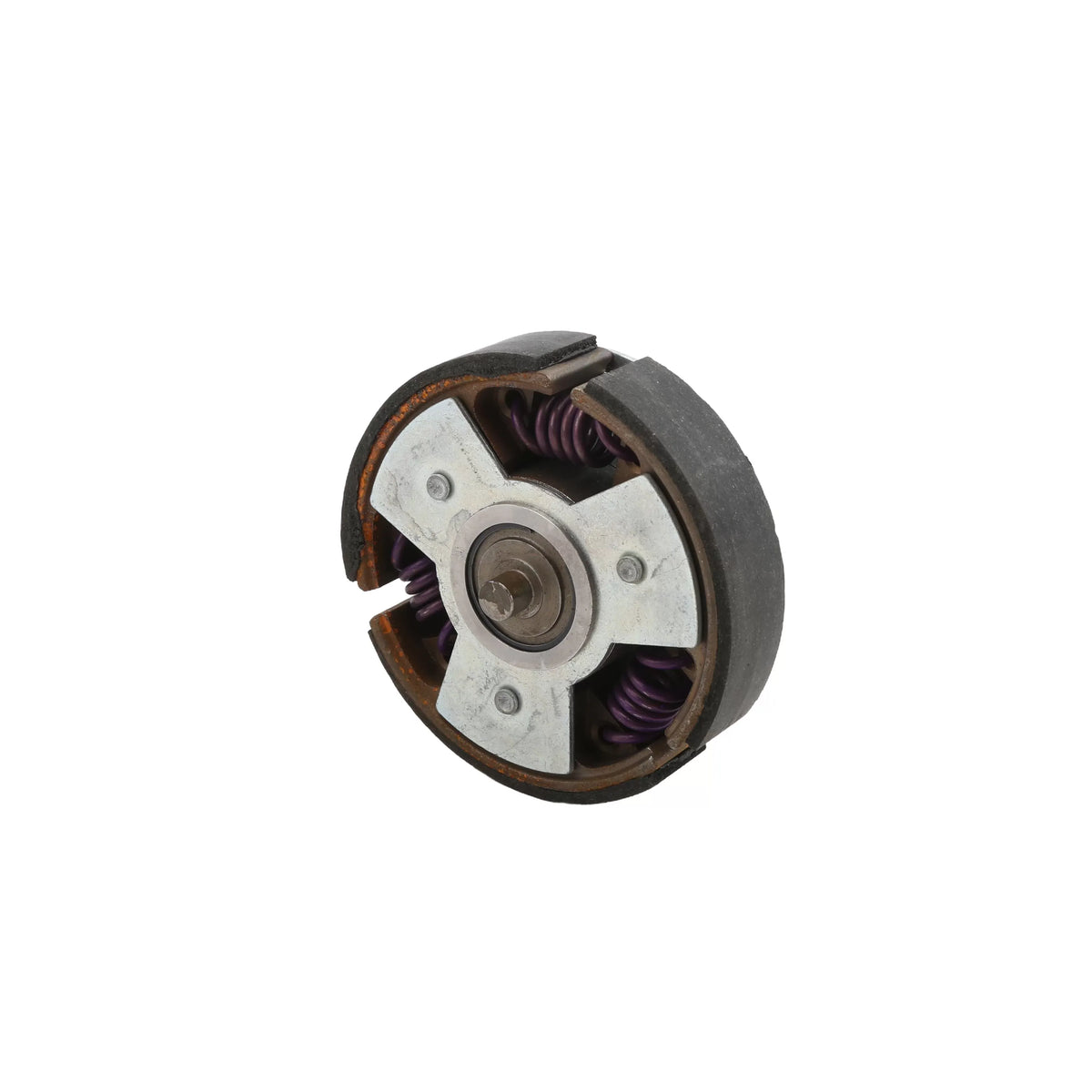

Angled view of the Little Beaver CCO-5# fiber shoe assembly showing three spring-tensioned centrifugal friction shoes.

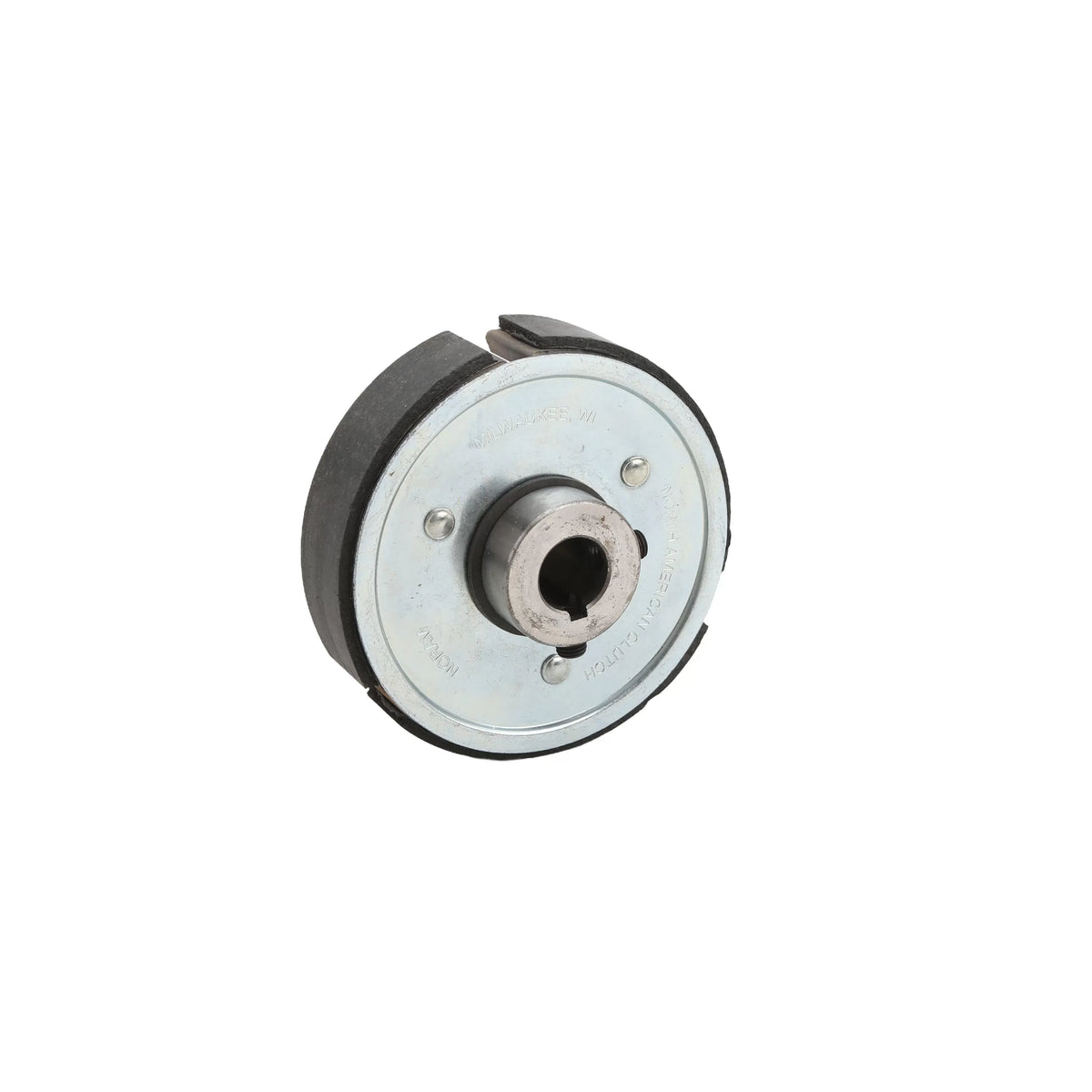

Side profile of the composite fiber clutch shoe assembly showing the friction pads and internal engine shaft mounting collar.

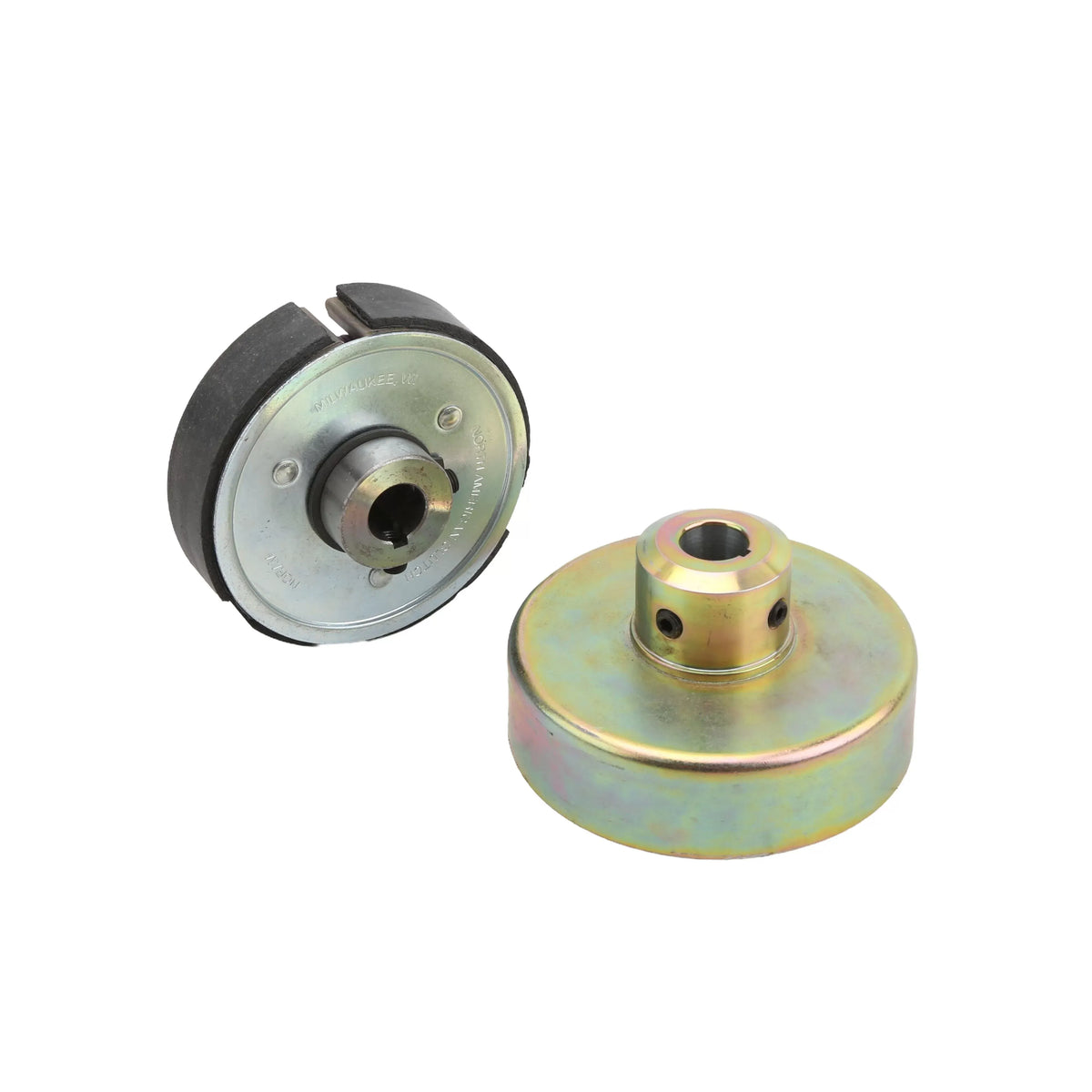

Little Beaver CCO-5# change-over kit displaying the fiber shoe friction hub alongside the 3/4-inch bore cast steel drum.

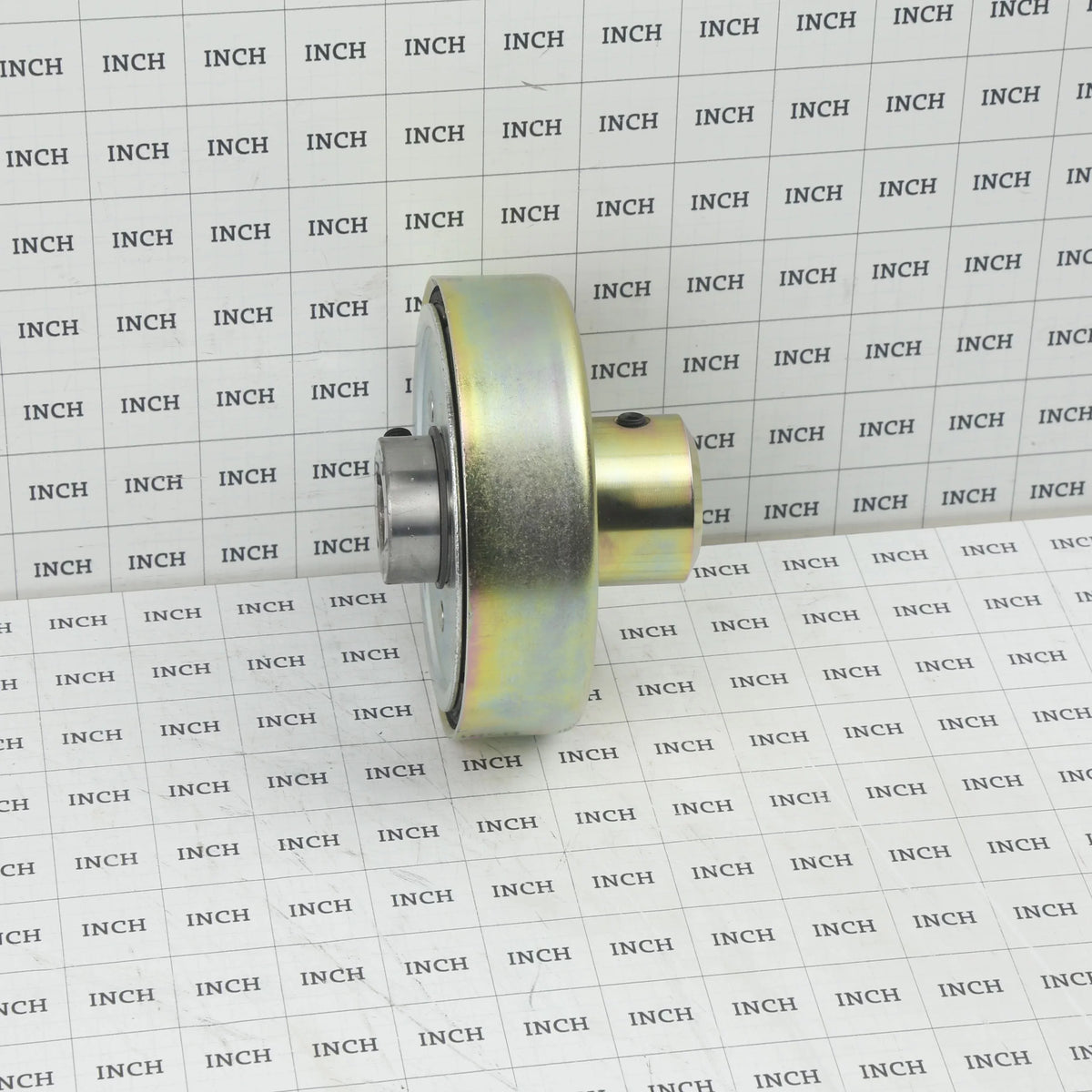

Assembled Little Beaver CCO-5# clutch and drum measured on an inch grid scale showing overall depth and hub diameter.

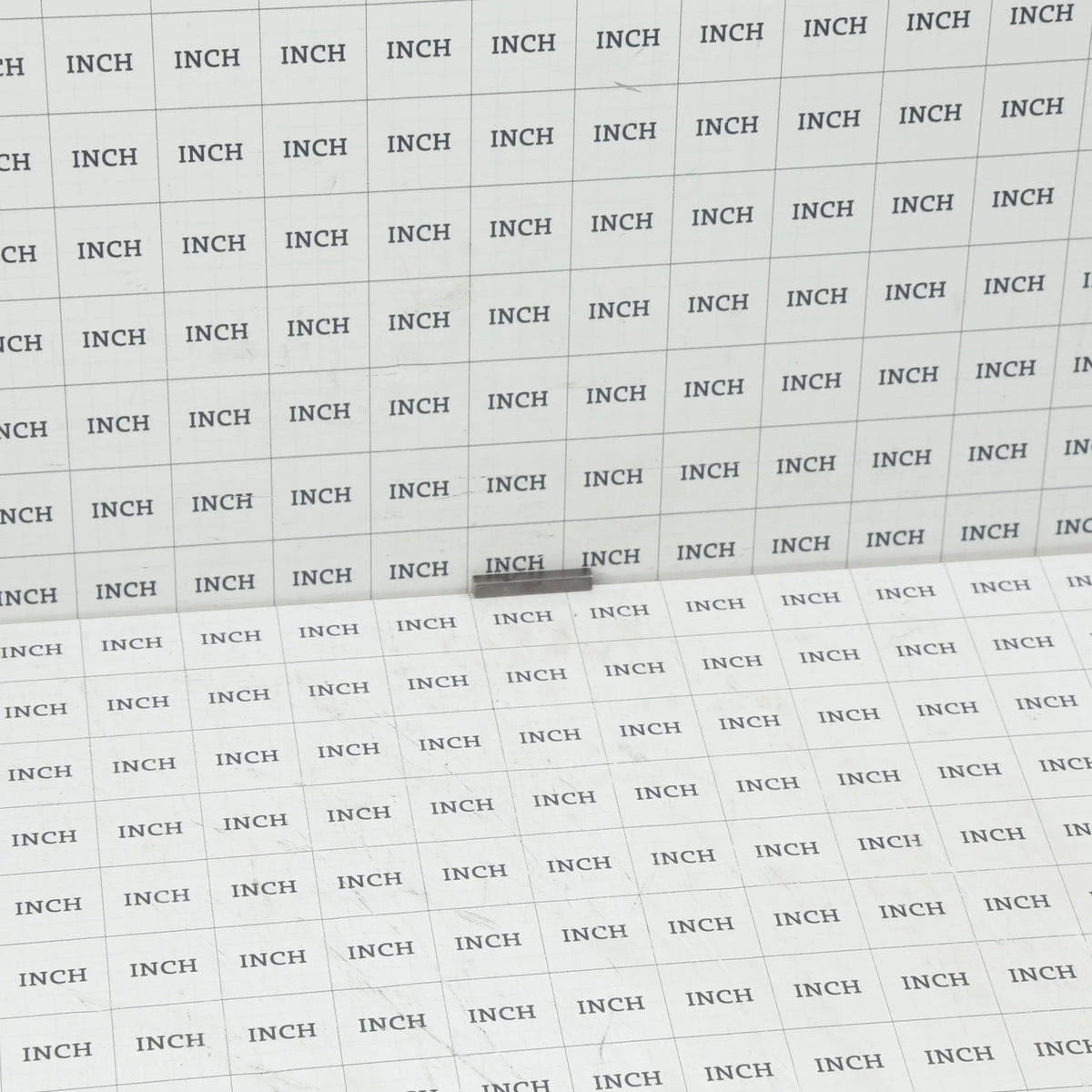

Steel drive shaft key for the Little Beaver CCO-5# kit measured on an inch grid scale showing 3/16-inch keyway dimensions.
Little Beaver CCO-5# clutch assembly split open to show the spring-loaded fiber shoes alongside the steel drum interior.
Little Beaver CCO-5# steel clutch drum showing the 3/4-inch bore engine shaft hub alongside the drive shaft key.
Little Beaver CCO-5# clutch drum measured on an inch grid scale showing the 3/4-inch engine bore collar height.
Top-down view of the Little Beaver CCO-5# clutch drum showing the 3/4-inch engine shaft bore and keyway slot.
Top-down view of the Little Beaver CCO-5# fiber shoe hub showing the 3/4-inch engine shaft collar and keyway alignment slot.
Angled view of the Little Beaver CCO-5# fiber shoe assembly showing three spring-tensioned centrifugal friction shoes.
Side profile of the composite fiber clutch shoe assembly showing the friction pads and internal engine shaft mounting collar.
Little Beaver CCO-5# change-over kit displaying the fiber shoe friction hub alongside the 3/4-inch bore cast steel drum.
Assembled Little Beaver CCO-5# clutch and drum measured on an inch grid scale showing overall depth and hub diameter.
Steel drive shaft key for the Little Beaver CCO-5# kit measured on an inch grid scale showing 3/16-inch keyway dimensions.
Little Beaver

Little Beaver Change Over Kit CCO-5# 5 HP 3 by 4 Inch Bore Clutch Fiber Shoes Drum (Earth Drill Mechanical Power Drive Replacement Part)

Only 1 left
SKU: CCO-5#
$269.00 USD

Description

Little Beaver CCO-5# 5 HP 3/4-Inch Bore Centrifugal Clutch Change-Over Kit with Fiber Shoes and Drum

The Little Beaver CCO-5# Change-Over Kit is an industrial mechanical replacement assembly engineered to restore centrifugal drive engagement on 5 HP mechanical earth drill power units. Featuring a 3/4-inch shaft bore engine clutch paired with heavy-duty fiber shoes and a precision-machined steel drum, this power drive service kit replaces worn drive components to maintain rotational torque transfer to auger extensions without slippage under soil resistance.

Best Used For:

  • Mechanical Earth Drill Service & Repair: Replacing worn centrifugal drive components on 5 HP Little Beaver ground drilling engines.
  • Fence Post & Deck Footing Digging: Eliminating drive clutch slippage when boring post holes through dense clay and compacted soils.
  • Soil Sampling & Landscaping Maintenance: Restoring instant throttle-response engagement during continuous commercial auger operation.

Key Performance & Safety Features

  • 3/4-Inch Engine Shaft Bore Fitment: Precision-machined 3/4-inch inside diameter bore mounts directly onto standard 5 HP engine crankshafts.
  • Friction-Resistant Fiber Shoes: High-density composite fiber shoe linings provide positive centrifugal lockup while reducing thermal wear.
  • Balanced Steel Clutch Drum: Machined steel outer drum housing engineered to absorb engagement friction and distribute rotational torque evenly.
  • Direct OEM Replacement Fit: Specifically engineered to match factory mounting geometry on Little Beaver 5 HP mechanical earth drills.
  • Heavy-Duty Engagement Springs: Calibrated spring tension keeps shoes disengaged at engine idle speed for safe operator handling.
  • Thermal Heat Dissipation: Vented drum design assists in shedding friction heat generated during heavy soil boring passes.

What's Included

  • (1) 5 HP Centrifugal Clutch Assembly with 3/4-Inch Bore
  • (1) Set of Heavy-Duty Composite Fiber Clutch Shoes
  • (1) Steel Clutch Outer Drum Housing
  • (1) Internal Retention Spring Kit

Technical Specifications

Brand / Manufacturer Little Beaver
Model / Part Number CCO-5# (CCO5)
Equipment Compatibility Little Beaver 5 HP Mechanical Earth Drills
Engine Power Rating 5 HP (3.7 kW Output Class)
Drive Shaft Bore Diameter 0.75 in. (19.05 mm) Shaft Bore
Clutch Type Heavy-Duty Centrifugal Friction Clutch
Friction Shoe Material High-Friction Composite Fiber Material
Drum Material Machined Cast Steel Housing
Keyway Slot Size 3/16 in. Standard Engine Keyway
Product Type Mechanical Power Transmission Change-Over Kit
Shipping Weight 4.85 lbs (2.20 kg)
Pro-Tip: Clean the engine crank drive shaft with fine emery cloth and apply a light anti-seize coating to the shaft before sliding on the 3/4-inch bore clutch hub to prevent thermal galling and ensure easy future maintenance.
