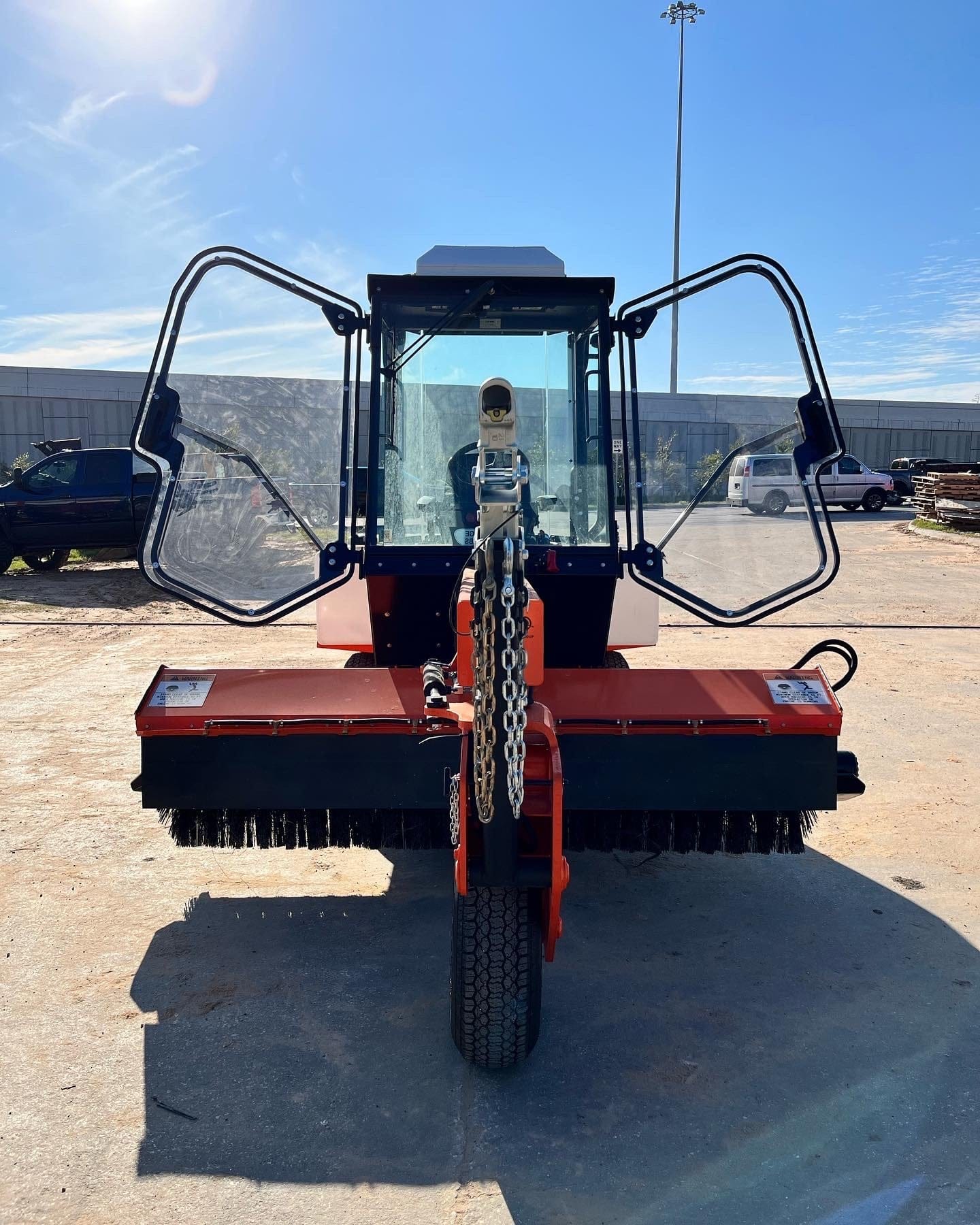

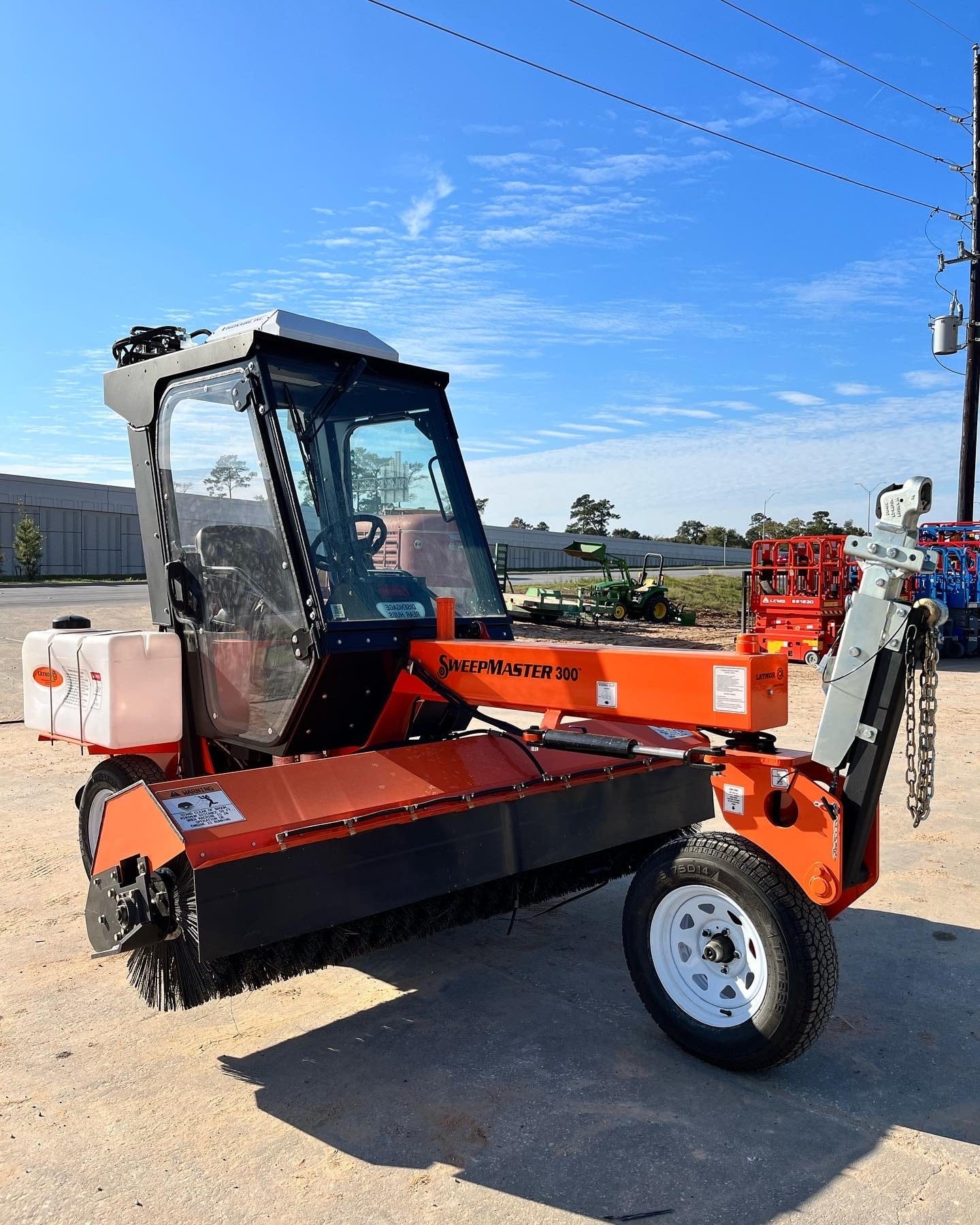

LayMor SweepMaster 300 - Closed Cab

The SweepMaster 300 hitches up to the back of your truck in seconds with our advanced hitch/towing package, coming standard, and there’s no need to raise the front wheel off the ground while towing. New features include a powerful Kubota 24.8 HP engine, a lower center of gravity, hydraulic manifold block, and a foot brake. Options include variable broom speed, special paint colors, strobe light, work lights, and emergency and stop/turn tail lights.

FEATURES

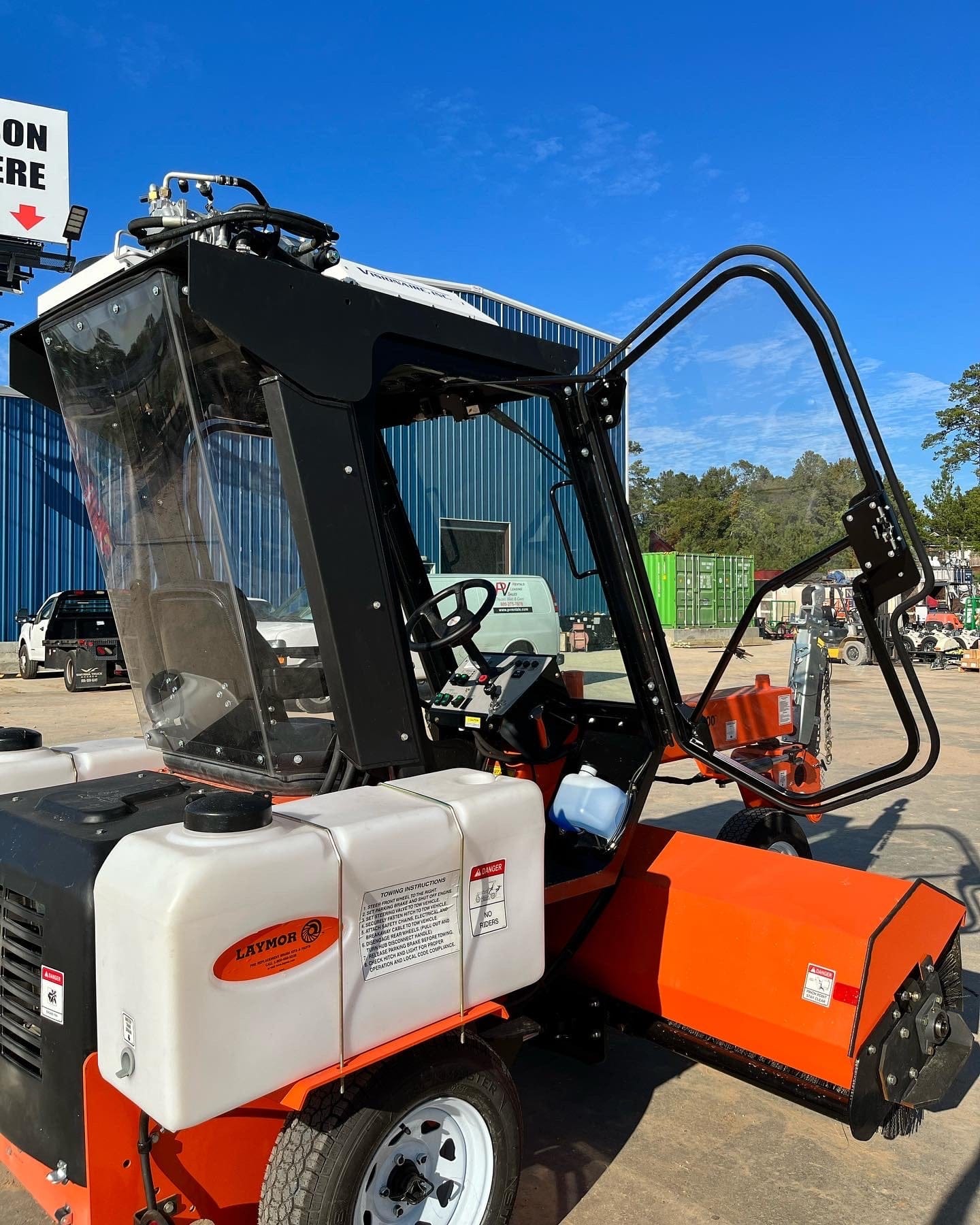

• Closed Cab
• Sprinkler System

• Easy to Operate – pivoting tongue for easy towing and fast hook-up

• All wheels on the ground during towing

• Minimal tongue weight

• Surge brakes

• Towing lights with turn signals

• Steel Broom Core

• Front Debris Deflector

• 9 Gallon Fuel Tank w/Mechanical Gauge

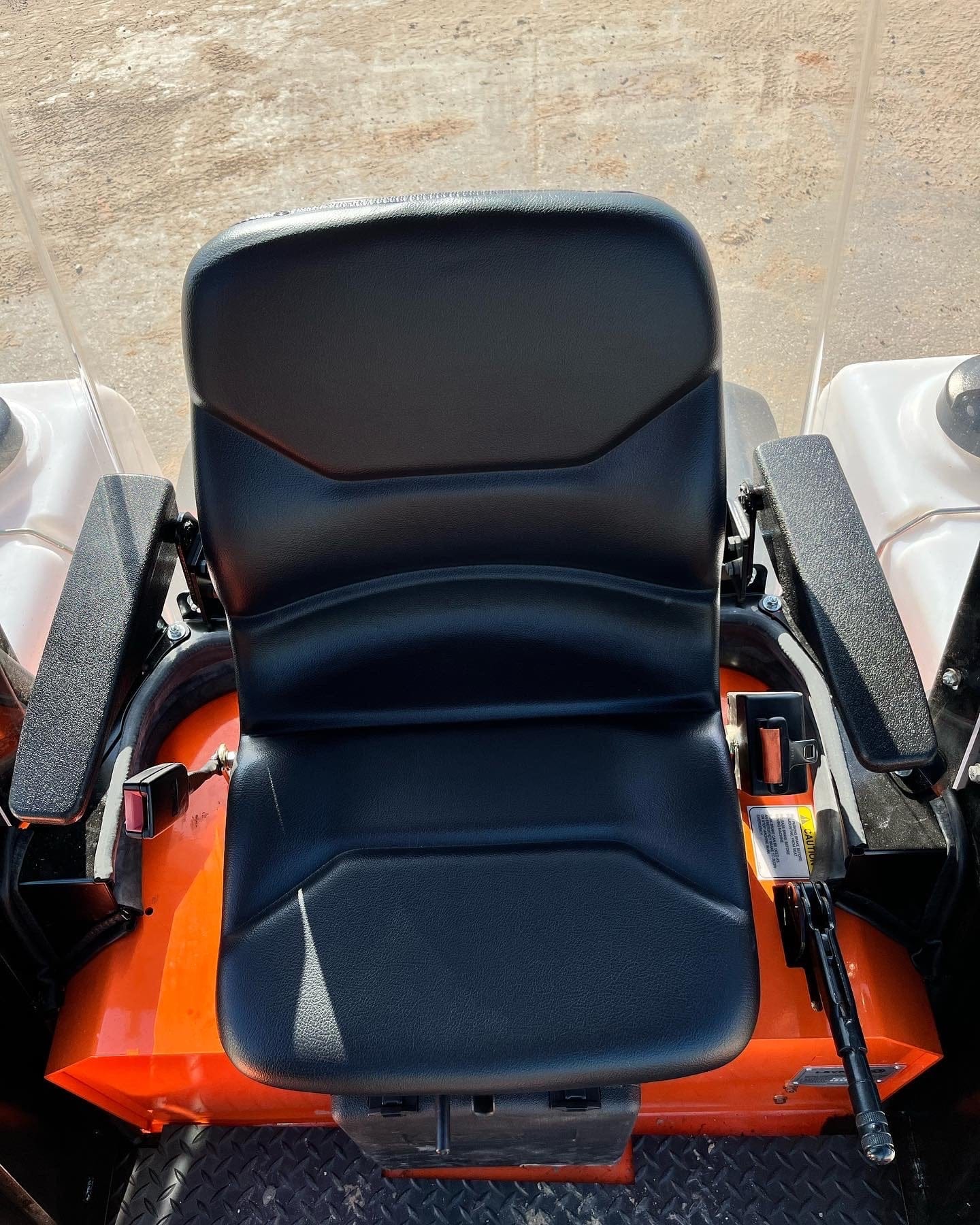

• Cushioned Seat with 2” Retractable Seat Belt & Arm Rests

• Reverse Alarm

• Electric Hour Meter

• Hydraulic Sight Gauge

• Warning Light Package, Engine Oil Pressure, Water Temperature and Alternator

• Engine Protection System

• Hub-Engaged Warning System

SPECIFICATIONS

• ENGINE: Kubota D1105 Tier 4 Final

• BROOM SIZE: 6.375'' I.D. x 24'' O.D.
• BROOM ANLGE: 40° (each way)
• STEERING: 45° (each way)
• SPEED: 0 to 7.5 mph
• MACHINE WEIGHT: 8' broom: 3,100 lbs
• TRANSPORT WIDTH: 8' broom: 7'10'' (fully angled)
• TRANSPORT LENGTH: 14' (hitch down)

• HEIGHT: 7' 6"
