Freud 89-250 3 Piece Chamfer Bit Set

DETAILS

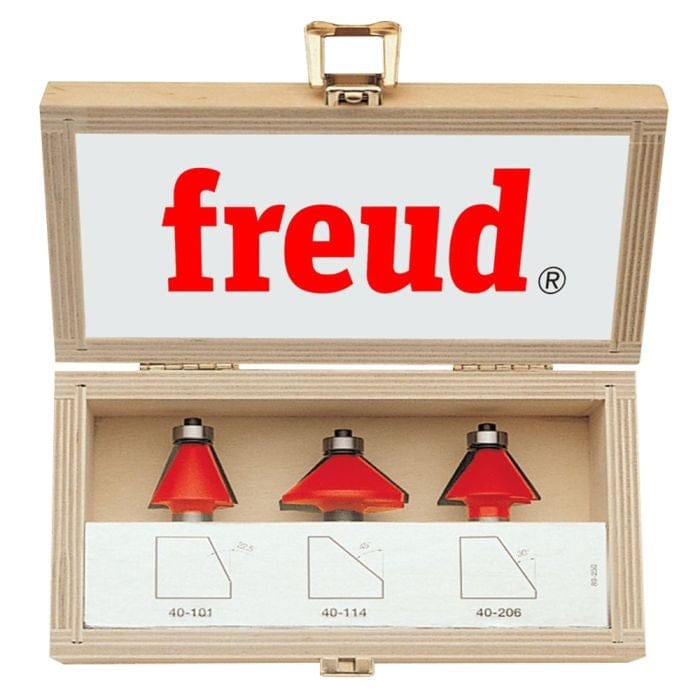

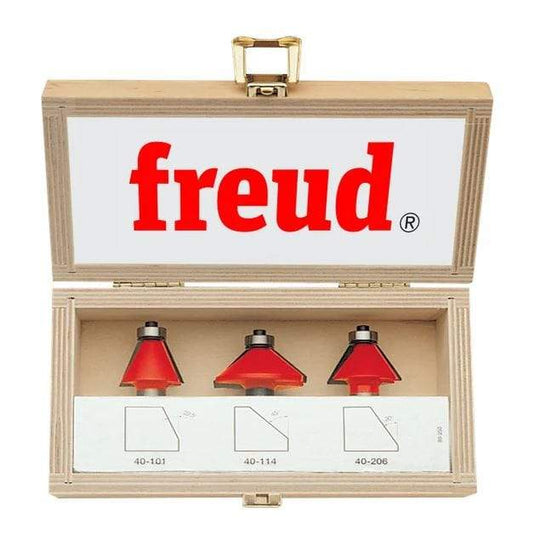

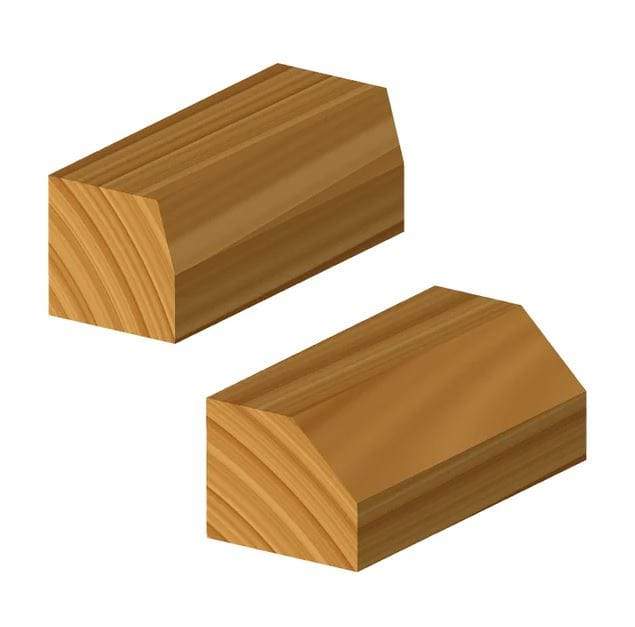

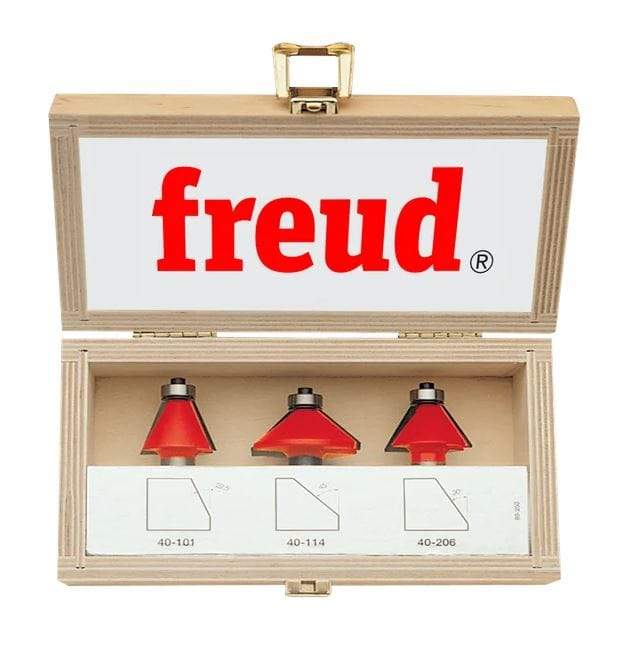

Chamfer bits maintain crisp, geometric lines while forming a uniform bevel on the edge of the work piece. This set includes 22-1/2°, 30° and 45° chamfer bits and an attractive wooden storage box. All bits are 1/2" shank and are suitable for use with hand-held or table-mounted routers to cut hardwood, softwood, plywood or composites.

FEATURES

• Includes 1/2" shank bits to rout 22-1/2°, 30° and 45° chamfers
• Adjust chamfer size by changing the height of the bit
• Cuts all composition materials, plywoods, hardwoods, and softwoods

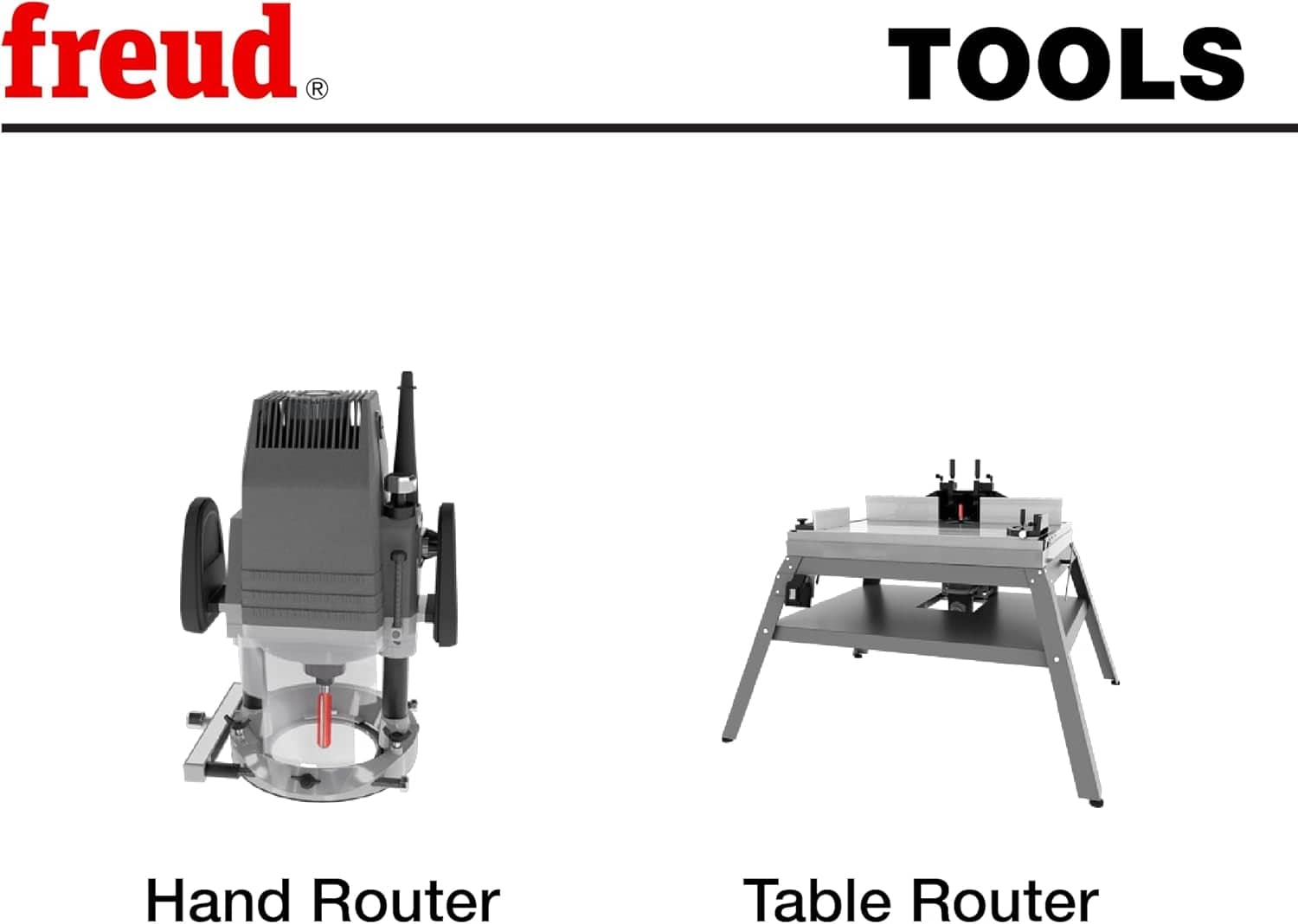

• Use on hand-held and table-mounted routers
• Freud Perma-SHIELD® Coating
• Ideal For: Maintaining crisp, geometric lines while forming a uniform bevel on the edge of the work piece

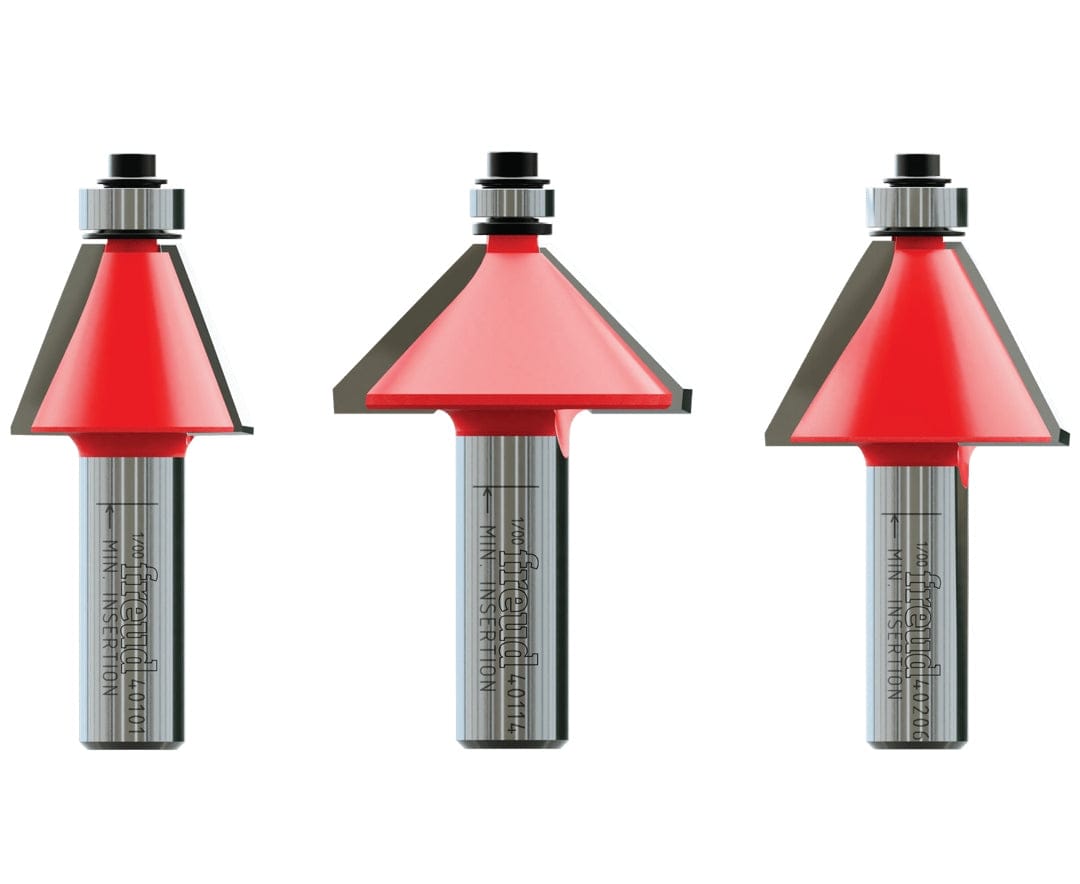

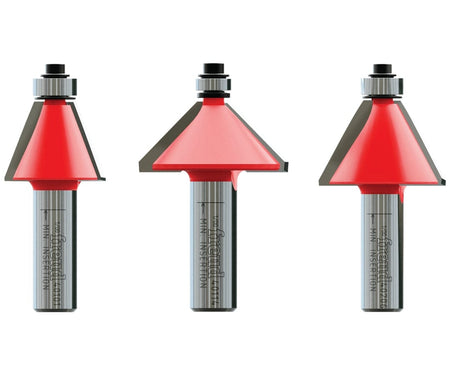

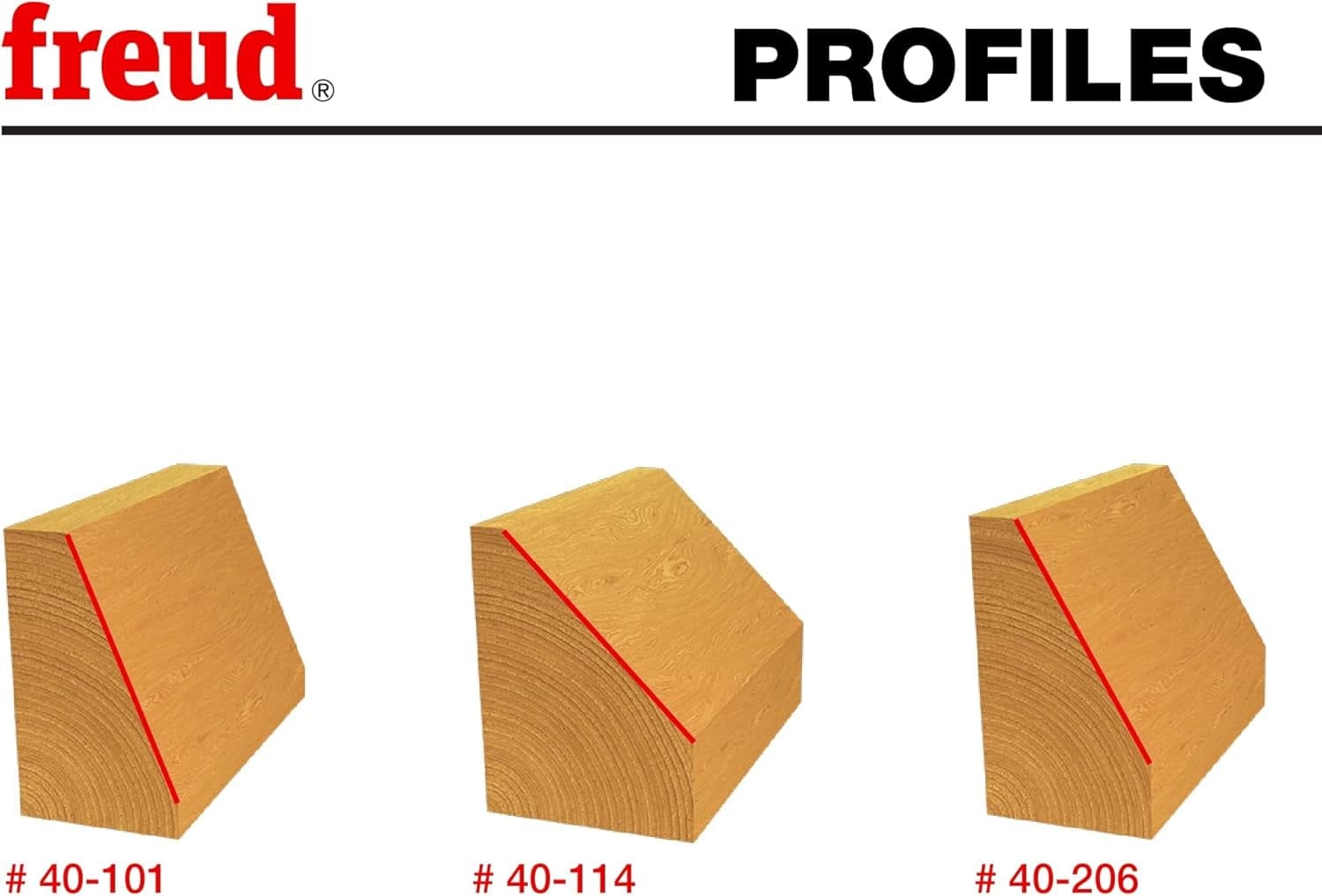

INCLUDES

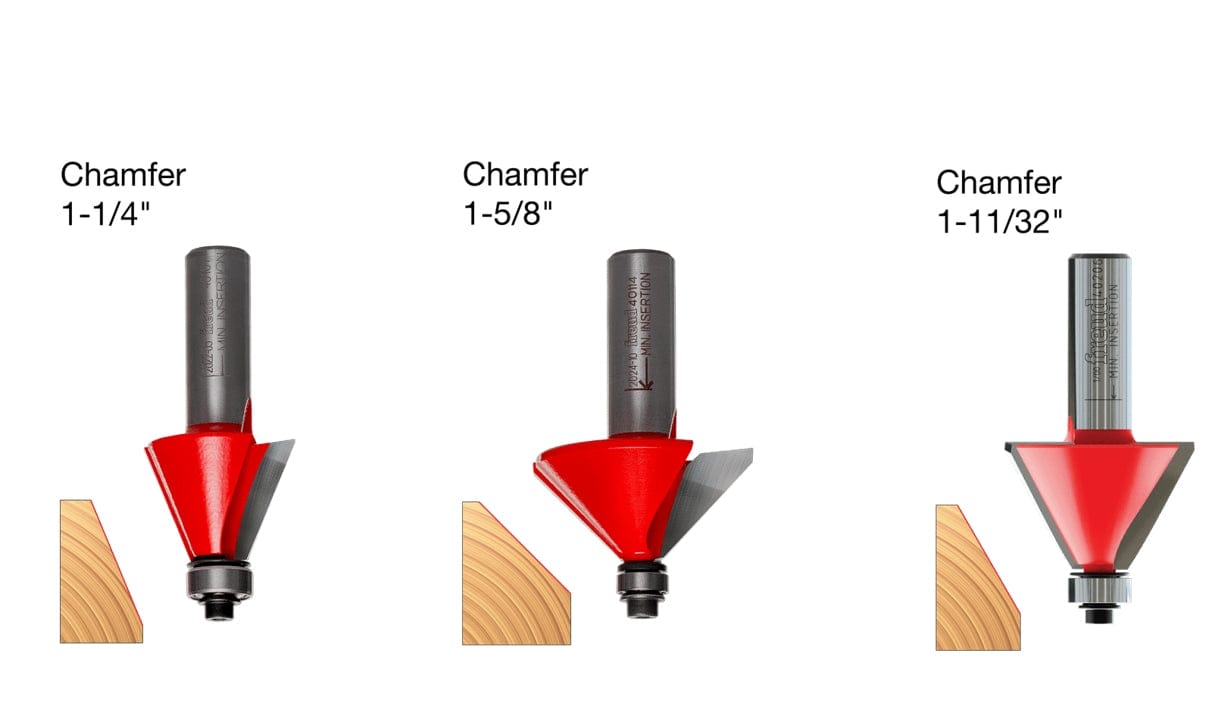

• #40-101 - 1-1/4" Chamfer Bit
• #40-114 - 1-5/8" Chamfer Bit
• #40-206 - 1-11/32" Chamfer Bit

1-1/4" Chamfer Bit - #40-101

• Angle - 22-1/2°
• Bearing Dia. - 1/2"
• Number of Cutters - 2
• Overall Dia. - 1-1/4"
• Overall Length - 2-5/8"
• Shank Dia. - 1/2"
• Carbide Height - 7/8"

1-5/8" Chamfer Bit - #40-114

• Angle - 45°
• Bearing Dia. - 3/8"
• Number of Cutters - 2
• Overall Dia. - 1-5/8"
• Overall Length - 2-9/16"
• Shank Dia. - 1/2"
• Carbide Height - 5/8"

1-11/32" Chamfer Bit - #40-206

• Angle - 30°
• Bearing Dia. - 1/2"
• Number of Cutters - 2
• Overall Dia. - 1-11/32"
• Overall Length - 2-3/4"
• Shank Dia. - 1/2"
• Carbide Height - 3/4"
