Freud 99-515 3-1/2" Raised Panel Bit

  • Sale
  • Regular price $96.00
  • 1 available

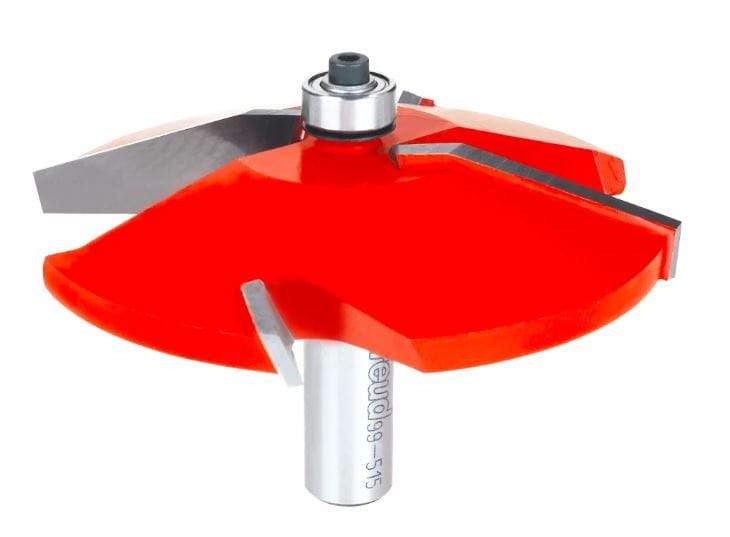

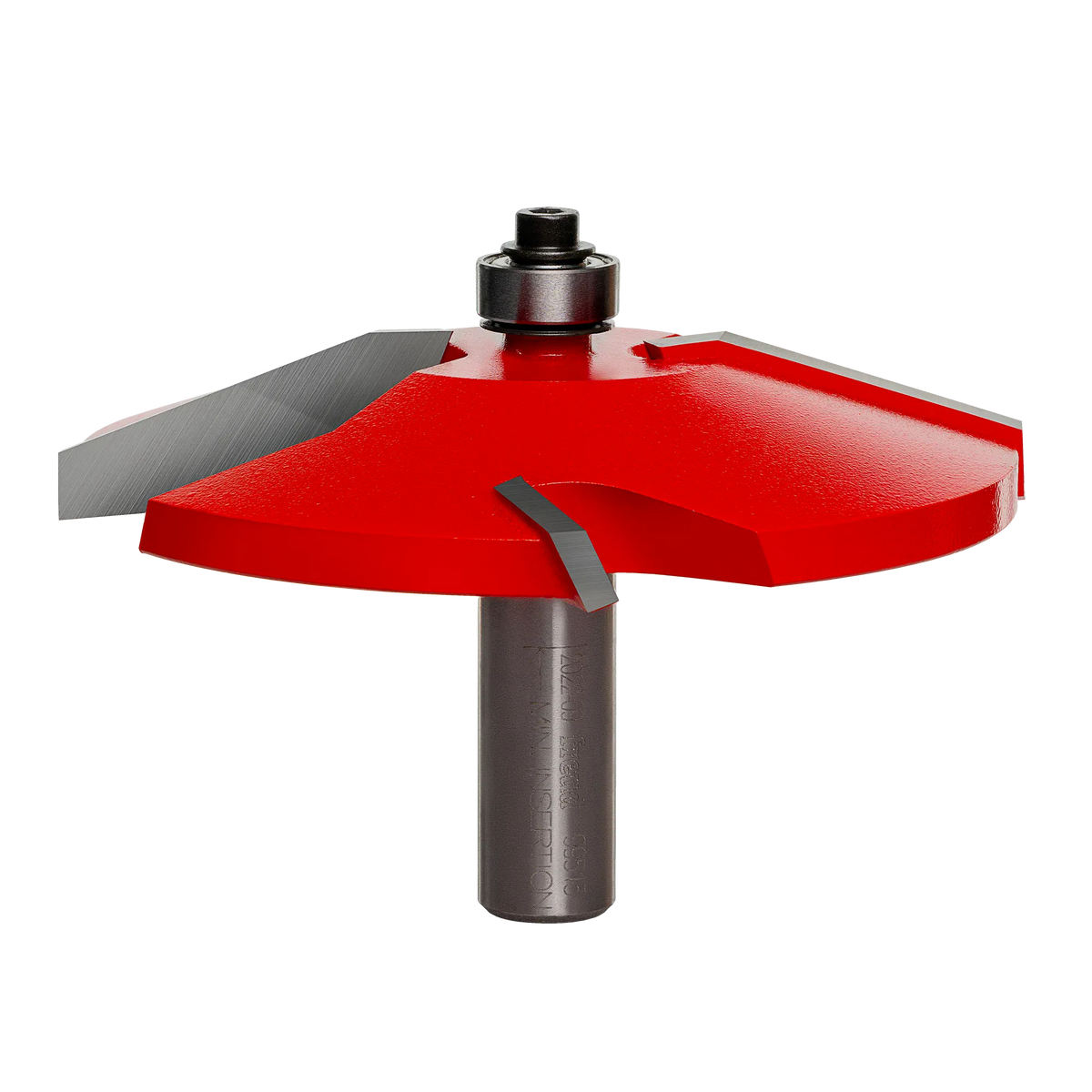

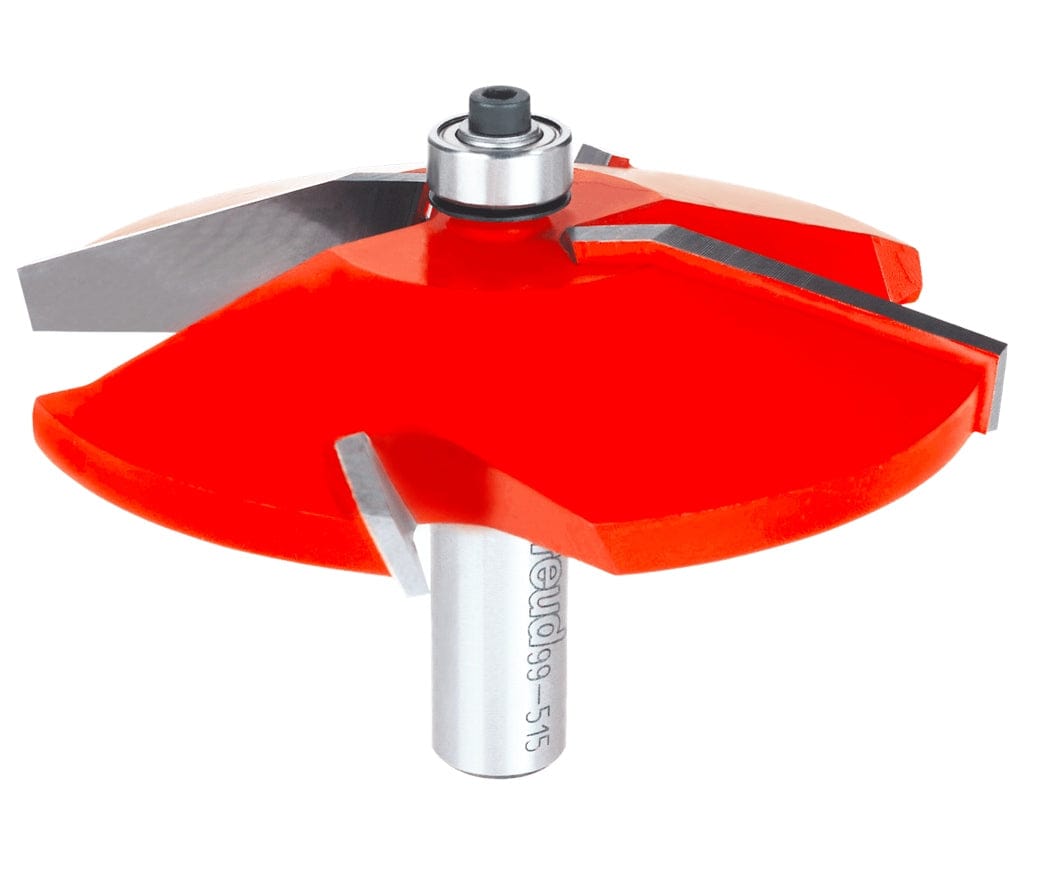

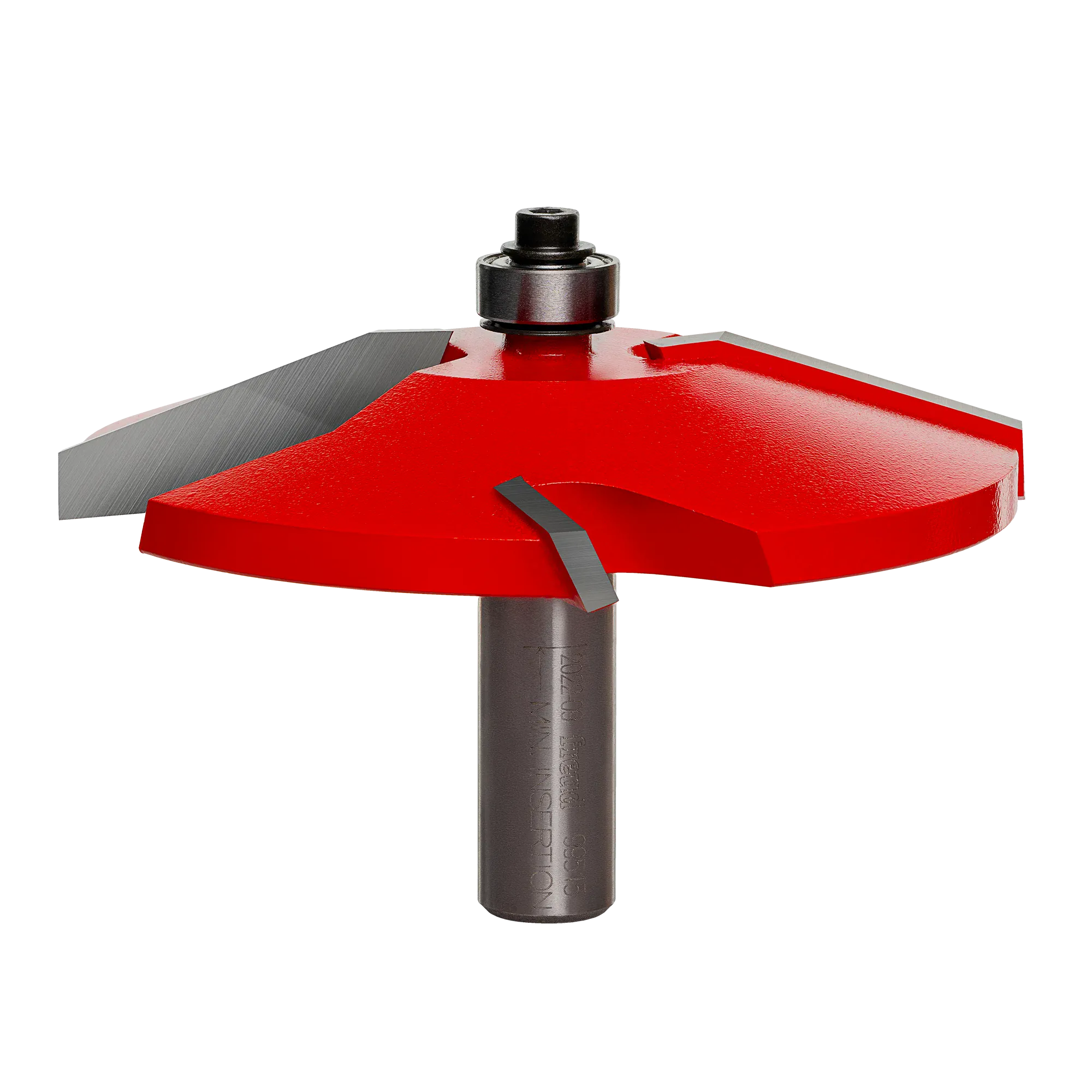

Freud 3-1/2" Raised Panel Bit - Mod. 99-515

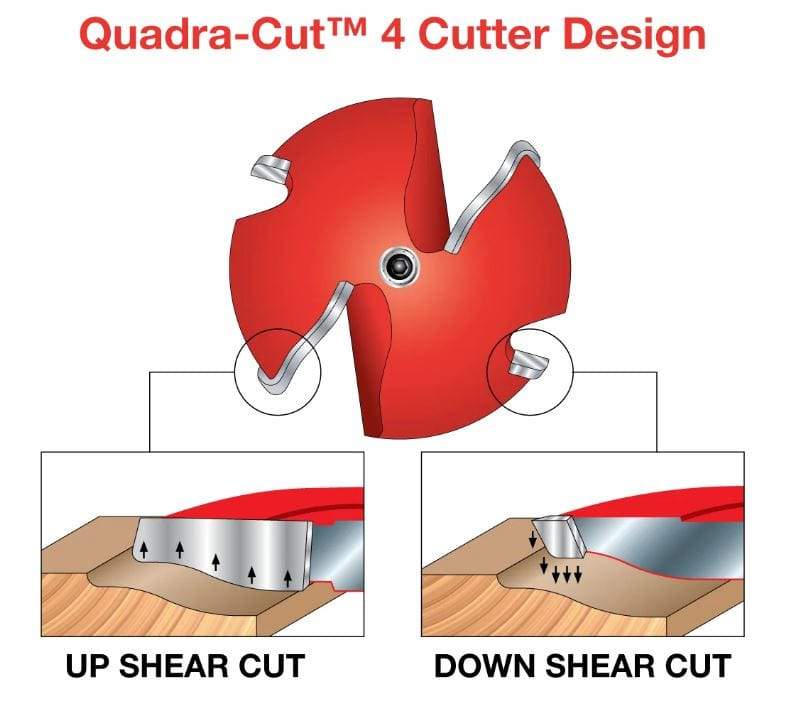

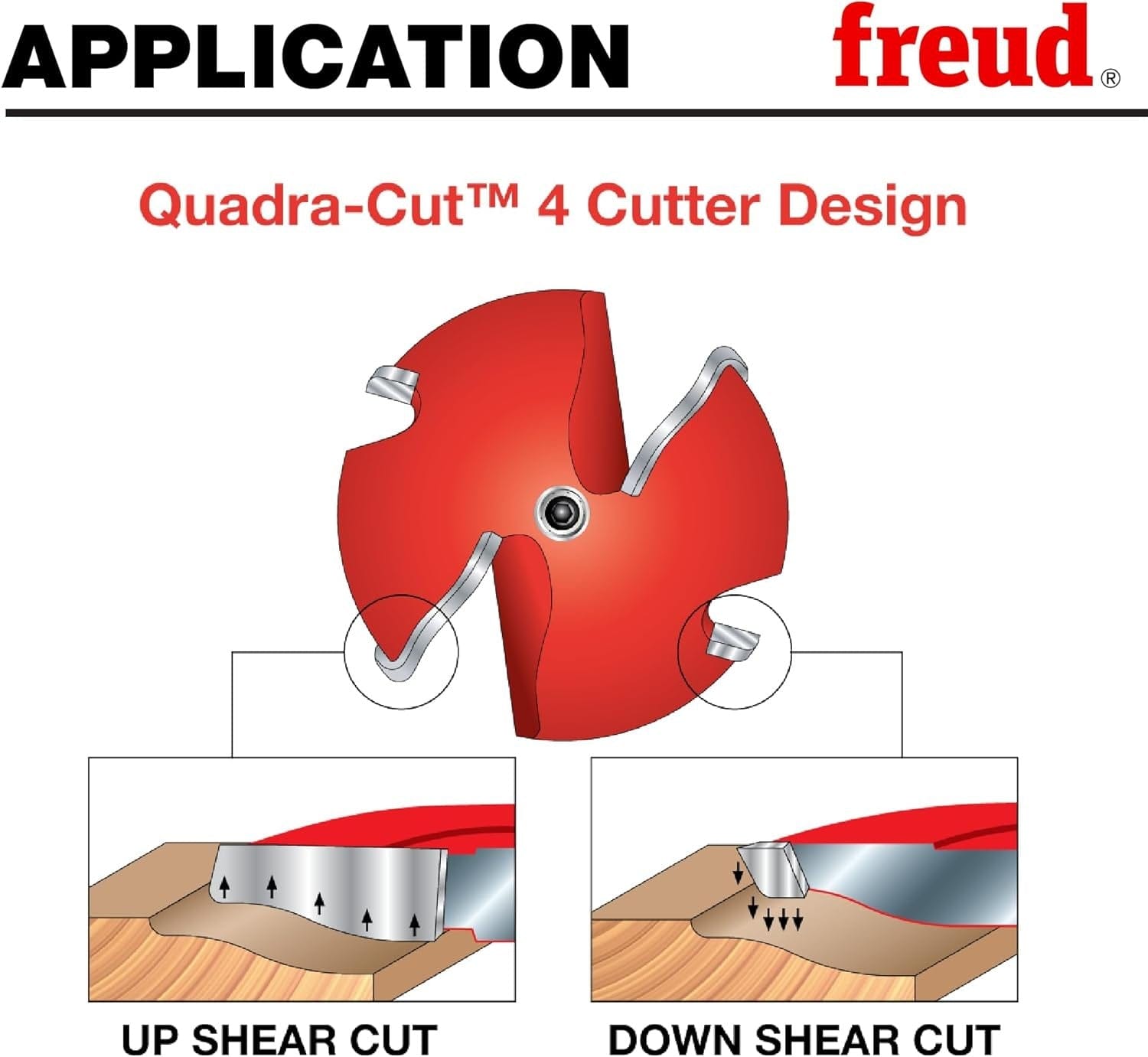

Freud's huge selection of Raised Panel Bits are ideal for creating raised panels for doors, drawer fronts and paneling, as well as decorative tops, plaques and molding. All of these bits feature revolutionary Quadra-Cut™design combining two small wings that cut downward to shear the top edge for a splinter-free surface, and two large wings that shear upward for a smooth finish. As you select your bit, note that some bits feature a 1/2" carbide height for use in 5/8" thick panels, and others have a 5/8" carbide height for 3/4" thick panels. Use raised panel bits in table-mounted routers with a fence to rout hardwood or softwood panels.


  • Freud Raised Panel Bits feature patented Quadra-Cut technology for flawless finish
  • Choose 1/2" carbide height for 5/8" stock. Use 5/8" height for 3/4" stock

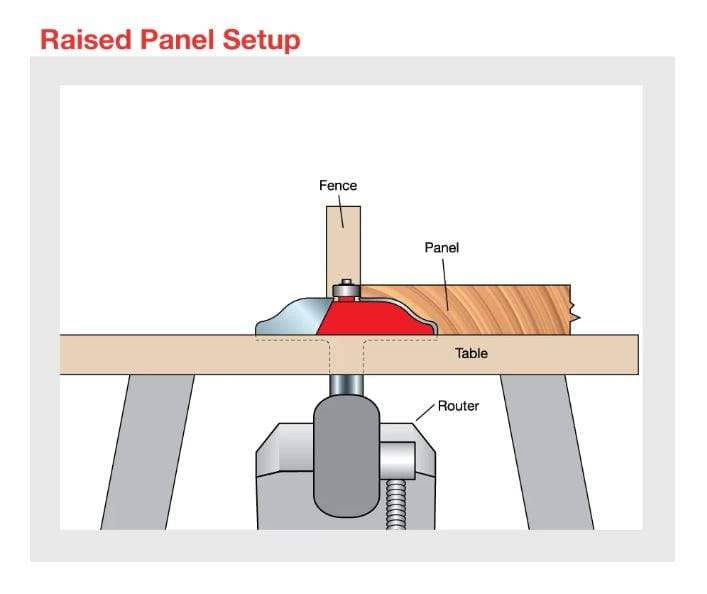

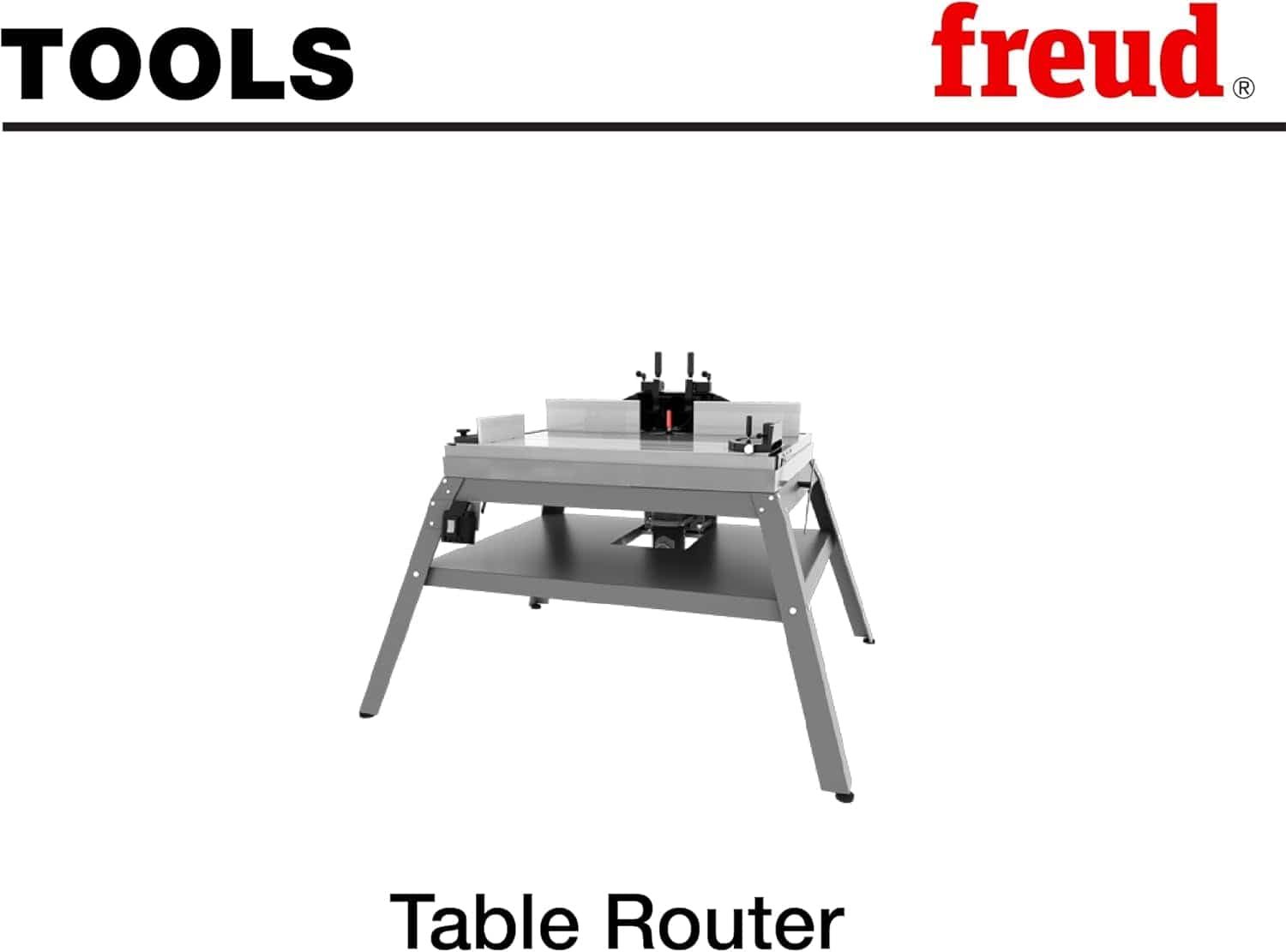

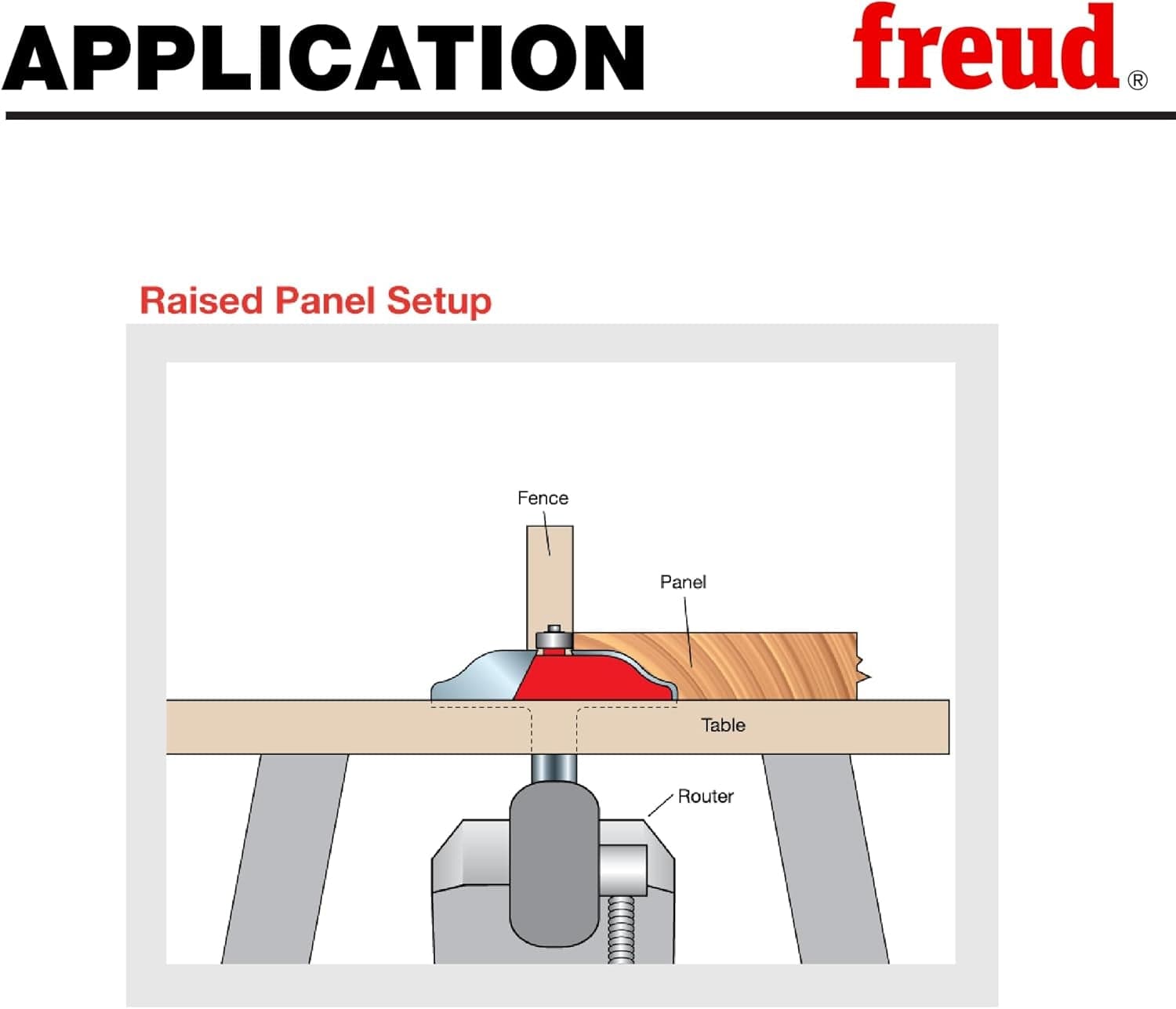

  • Use only in table-mounted routers with a fence

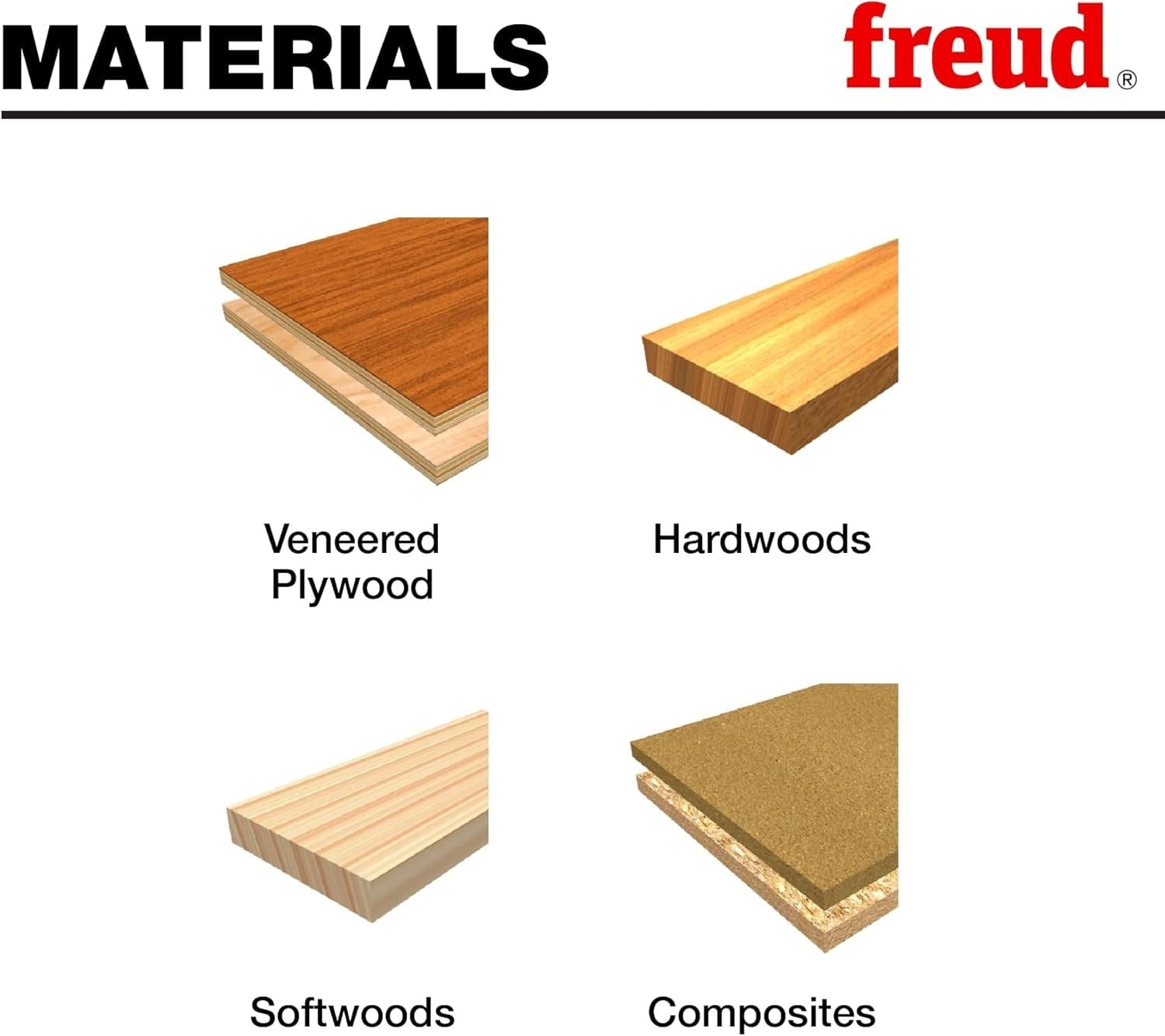

  • Routs hardwood, softwood or composite panels
  • Freud Perma-SHIELD® Coating

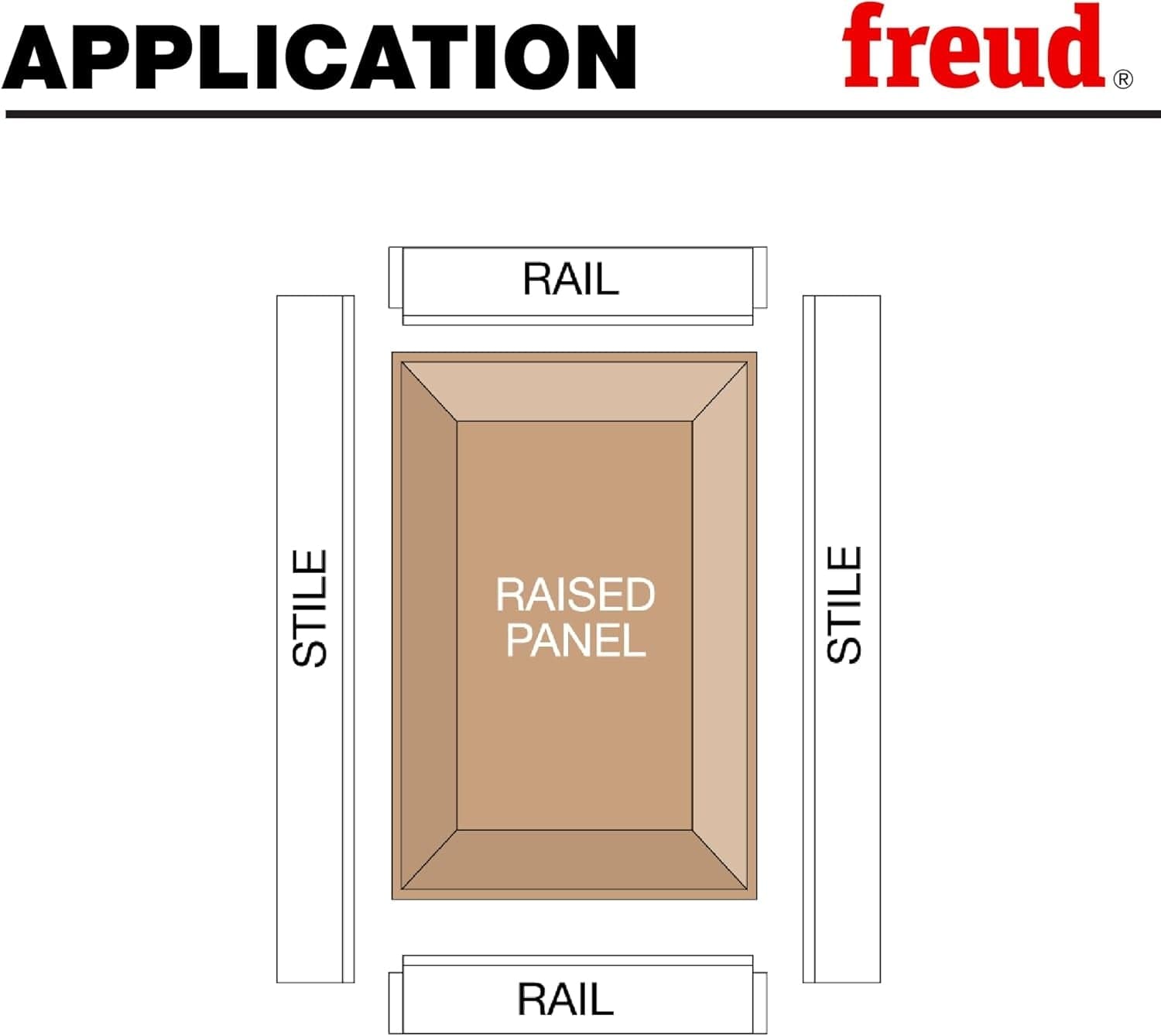

  • Ideal For: Creating beautiful raised panels for cabinet doors or wall paneling


  • Minor Height - 5/32"
  • Number of Cutters - 4
  • Overall Dia. - 3-1/2"
  • Overall Length - 2-1/2"
  • Shank Dia. - 1/2"
  • Small Dia. - 1-1/4"
  • Carbide Height - 5/8"
