CST Berger Magnetic Locator MT202 43.75 Inch MagnaTrak 200 (Digital LCD Screen Interference Erase Power Line Indication Buried Ferrous Valve Finder)
Couldn't load pickup availability
Industrial Subsurface Magnetic Locator with Digital Telemetry Readout, Clutter Erase Function, and Live Power Line Field Alert
The CST Berger MT202 Magna-Trak 200 Series Magnetic Locator delivers commercial-grade subsurface tracking utility and absolute signal reliability for field excavation teams. Engineered for total one-handed operation via integrated handle-mounted tactile controls, this specialized tool isolates deep iron and steel targets through soil, standing water, and heavy snow cover. This surveying solution resolves time-consuming excavation tracking errors, boundary pin identification delays, and utility mapping bottlenecks by integrating an advanced Erase function to mask nearby metal fence interference alongside an LCD power line radiation warning matrix. Featuring a balanced 43.75-inch frame weighing only 2.77 lbs., this lightweight instrument combines a high-contrast digital segment readout with an adjustable audio frequency sweep to pinpoint targeted infrastructure markers rapidly.
Best Used For:
- Interference-Heavy Pinpoint Mapping: Locating structural boundary pins, iron surveyor stakes, and PK nails positioned right next to steel security fences.
- Deep Utility Line Discovery: Tracking buried cast-iron water mains, subterranean gas pipelines, valve box extensions, and structural manhole cover trims.
- All-Weather Property Auditing: Finding lost metal utility vault frames and well casings across snow-packed ground sheets or flooded construction ditches.
Key Performance & Safety Features
- Proprietary Erase Function: Allows technicians to instantly filter out localized magnetic background distortions from parked cars or structural steel work.
- Visual Power Line Indicator: Flashes real-time telemetry alerts on the digital LCD matrix when approaching dangerous electromagnetic radiation fields.
- High-Contrast Visual Interface: Digital scale readout and multi-segment bar graph display target center-points visually to eliminate interpretation errors.
- True One-Handed Ergonomics: Controls for device sensitivity and audio volume are integrated directly on the handle grip for rapid single-handed field operation.
- Segmented Battery Level Monitor: Continuous digital voltage sensor shows remaining battery life openly to eliminate unexpected field shutdowns.

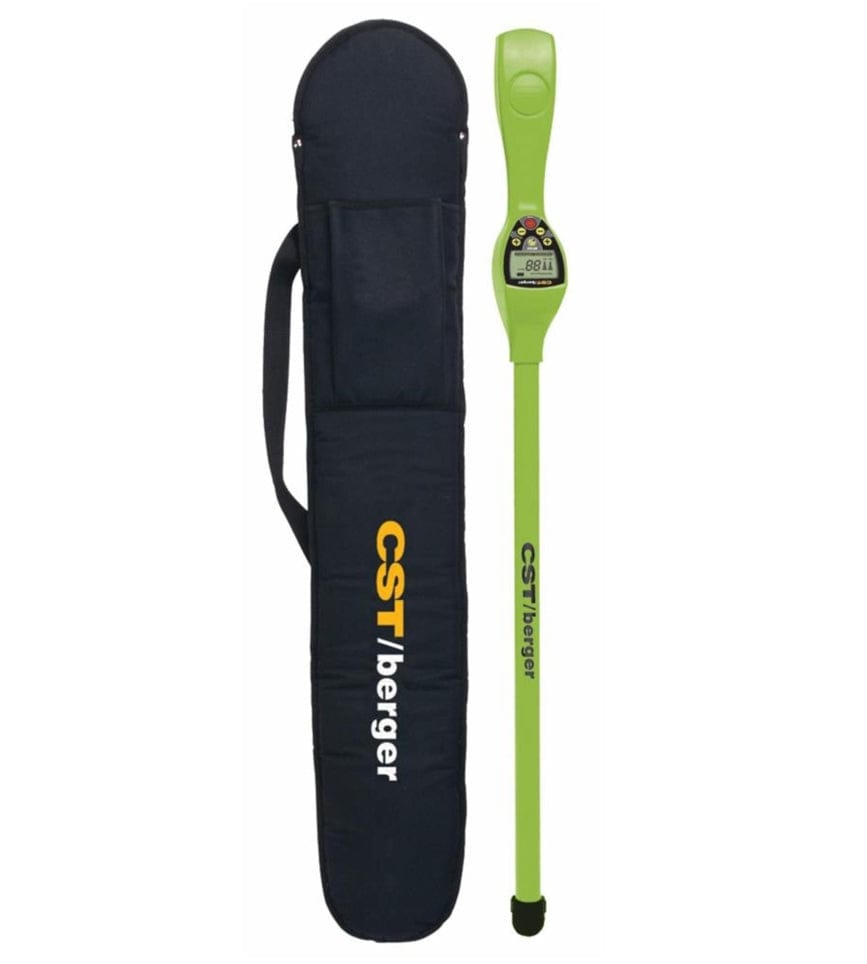

What's Included
- (1) CST Berger Magna-Trak MT202 200 Series Magnetic Locator
- (1) Heavy-Duty Soft Padded Utility Carrying Case
Technical Specifications
| Specification | Value |
|---|---|
| Brand Name | CST Berger |
| Model Number | MT202 (19-202SC) |
| Device Category Type | Magnetic Locator |
| Maximum Tool Length | 43.75 in. |
| Assembled Tool Weight | 2.77 lbs. |
| Signal Feedback Display | Digital LCD with Numeric Scale & Bar Graph |
| Chassis Color Shell | High-Visibility Safety Yellow |
| Housing Shell Material | Durable High-Impact Engineered Plastic |
| Target Materials Recognized | Ferrous Metals Only (Iron and Steel) |
| Power Line Indication | Yes (Visual LCD Segment Alarm) |
| Interference Filter System | Proprietary Push-Button Erase Mode |
| Battery Monitoring Layout | Segmented Digital State Indicator |
| Total Packaged Weight | 4.77 lbs. |
| Commercial Protection Warranty | Lifetime against Manufacturer's Defects |
Pro-Tip: When surveying paths over structural steel reinforcing mesh, use the Erase function while pointing the unit directly at a neutral grid zone. This sets a new baseline reference, enabling you to detect the concentrated magnetic spikes of deeper pipe markers without chasing the wide baseline signal of the structural steel grid.
