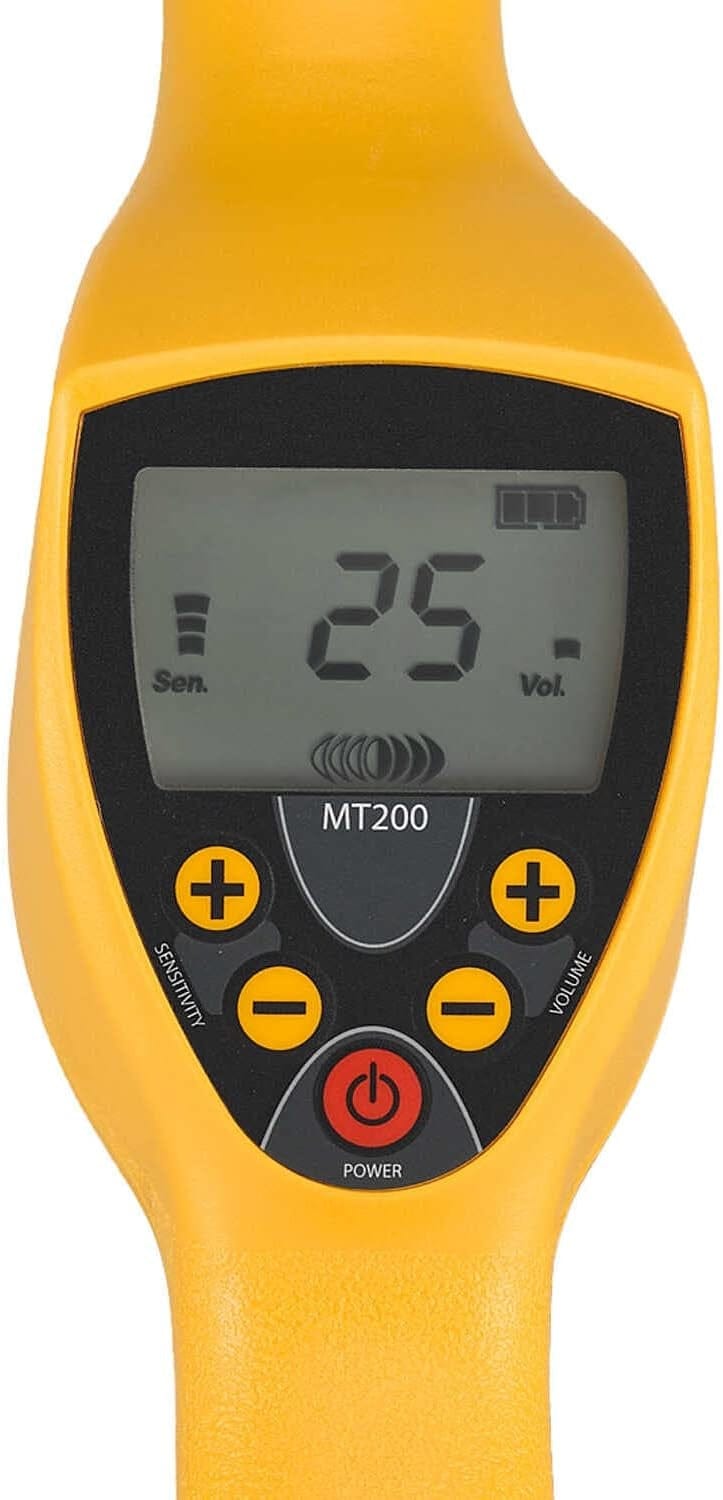

A close-up of the Magna-Trak MT200 interface, featuring a digital LCD screen showing numeric and bar graph readouts, plus tactile buttons for power, volume, and sensitivity adjustments.

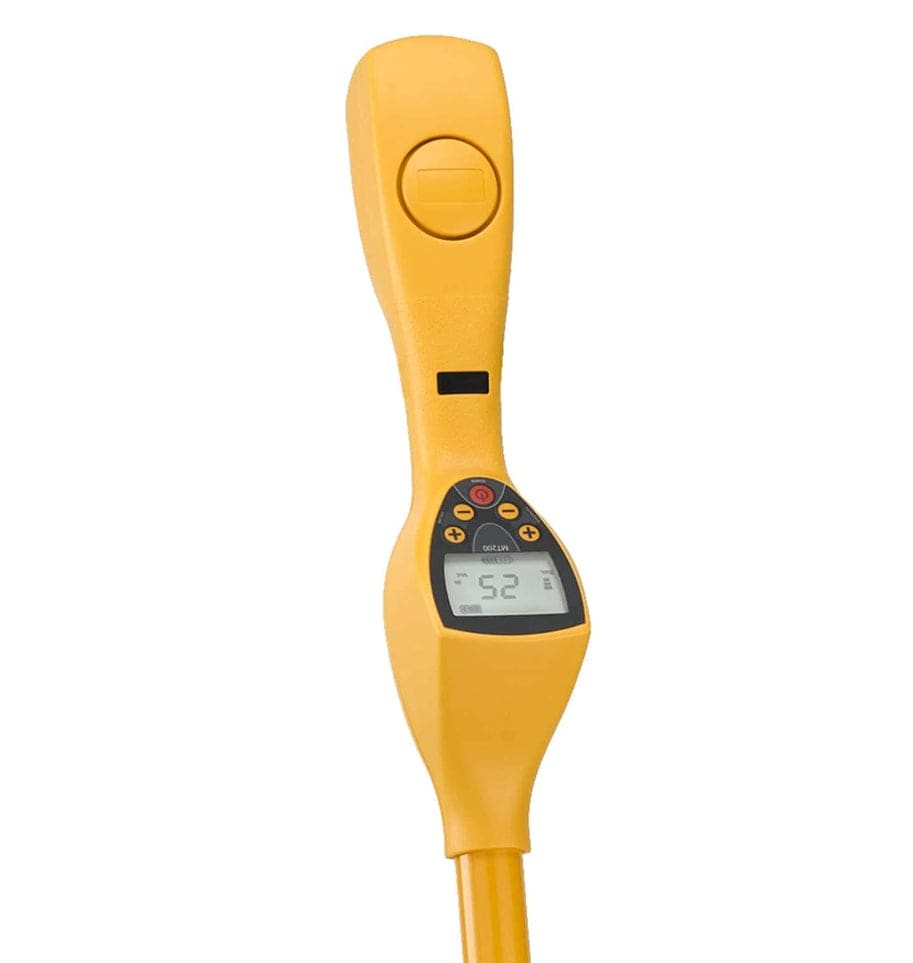

A top-down perspective of the yellow magnetic locator housing, highlighting the ergonomic handle, power line indicator warning area, and the digital display unit.

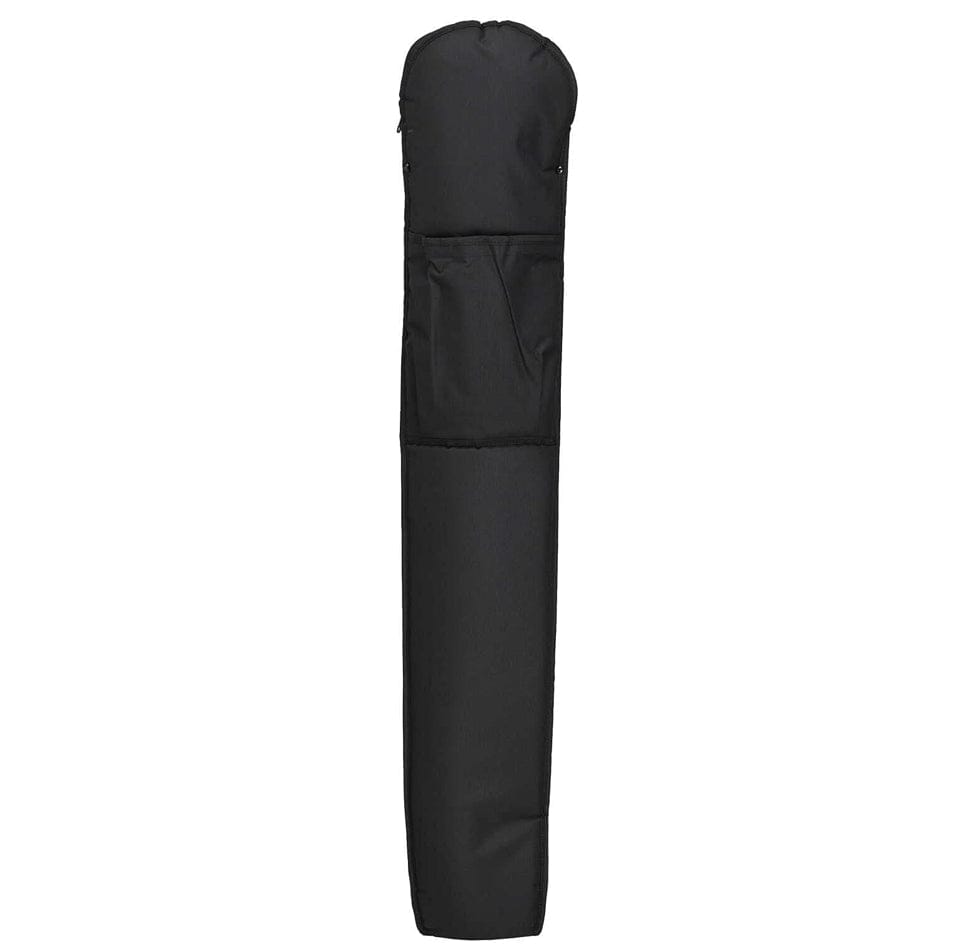

A long, black soft-sided carrying case with a shoulder strap and an external accessory pocket, designed for transporting the Magna-Trak locator.

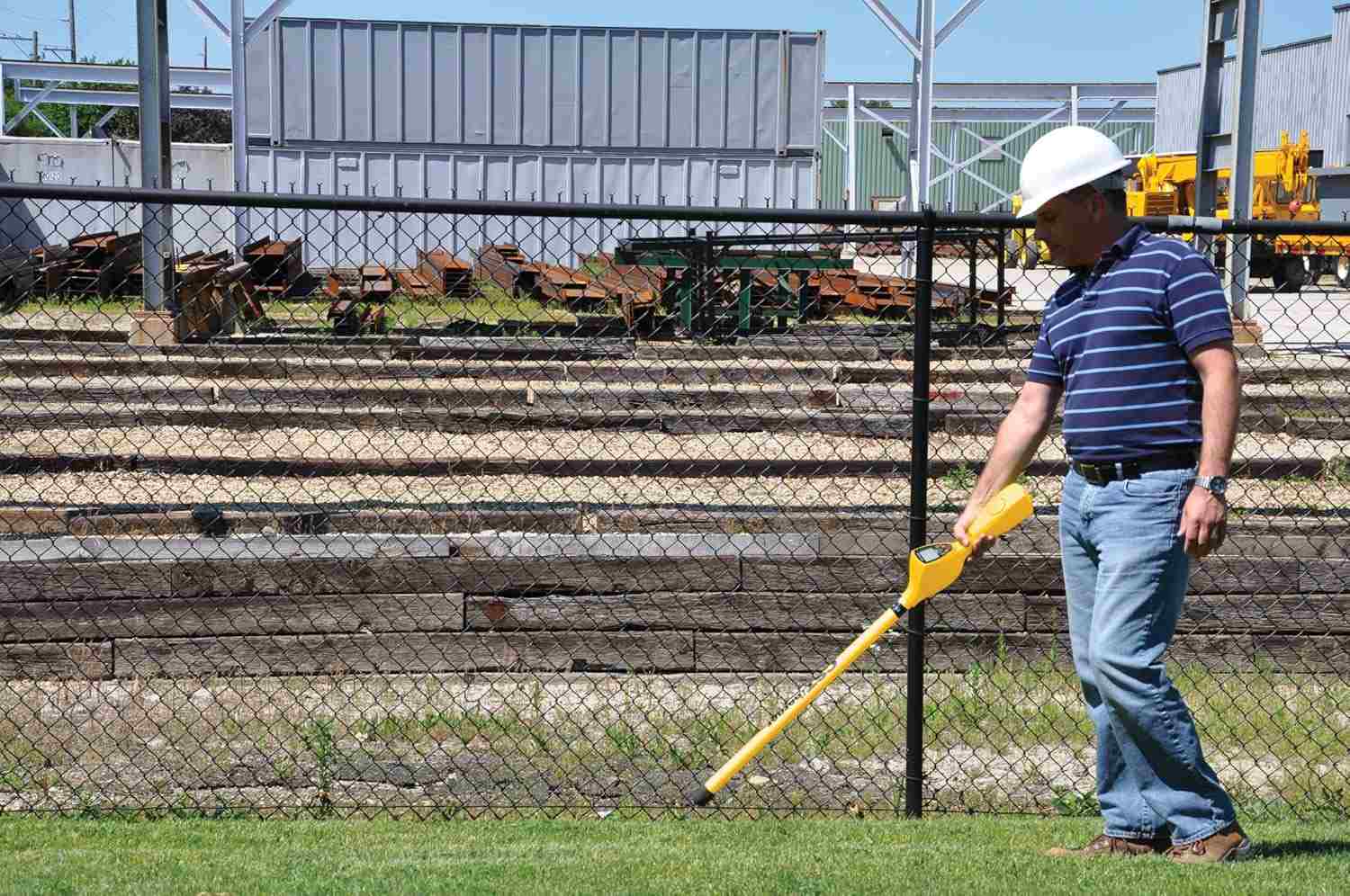

A worker wearing a white hard hat and safety gear uses the yellow magnetic locator to sweep a grass area next to a chain-link fence at an industrial job site.
A close-up of the Magna-Trak MT200 interface, featuring a digital LCD screen showing numeric and bar graph readouts, plus tactile buttons for power, volume, and sensitivity adjustments.
A top-down perspective of the yellow magnetic locator housing, highlighting the ergonomic handle, power line indicator warning area, and the digital display unit.
A long, black soft-sided carrying case with a shoulder strap and an external accessory pocket, designed for transporting the Magna-Trak locator.
A worker wearing a white hard hat and safety gear uses the yellow magnetic locator to sweep a grass area next to a chain-link fence at an industrial job site.
CST/berger

CST Berger Magnetic Locator 19-200SC 15 Foot Depth MagnaTrak 200 (Digital LCD Screen Power Line Indication Ferrous Metal Surveying Utility Finding)

In stock
SKU: 19-200SC
$599.00 USD

Description

Industrial-Grade Magnetic Locator with Deep Subsurface Telemetry, Digital LCD Interface, and Live Power Line Field Alert

The CST Berger 19-200SC Magna-Trak 200 Magnetic Locator delivers professional-grade subsurface tracking utility and absolute signal reliability for field excavation teams. Engineered for complete one-handed operation, this specialized hand tool isolates high-depth iron and steel targets up to 15 feet underground while filtering out non-ferrous structural interference. This heavy-duty surveying solution resolves time-consuming excavation tracking errors, boundary pin identification delays, and utility mapping bottlenecks by combining high-fidelity digital bar graph displays with localized audio feedback. Built with integrated volume and sensitivity thumb controls, this 4.74 lb. locating system maintains structural performance across mud, deep snow, and submerged aquatic environments while operating for up to 100 hours continuously.

Best Used For:

  • Deep Subsurface Utility Tracking: Pinpointing buried structural manhole covers, fuel storage tanks, steel valve boxes, and cast-iron pipeline paths down to 15 feet before mechanical digging begins.
  • Surveying Marker Mapping: Recovering deep-seated ferrous property boundary pins, iron corner stakes, and structural masonry anchors hidden beneath dense ground cover or snow.
  • All-Weather Infrastructure Locating: Tracking hidden pipeline joints and well casings reliably in saturated trenches, marshes, or shallow water pools.

Key Performance & Safety Features

  • Ergonomic One-Handed Operation: Formed layout integrates sensitivity and volume controls directly onto the handle, keeping the second hand free for site marking tools.
  • Visual Power Line Indicator: Screen interface displays an automated warning matrix when encountering electromagnetic fields from live buried or overhead lines.
  • Dual Feedback Target Mapping: Integrates a digital segment bar graph and a numeric LCD scale with precise audio pitch sweeps to identify the exact center of targets.
  • 100-Hour Field Battery Runtime: High-efficiency tracking circuitry extends continuous deployment up to 100 hours on a single power cell change out.
  • All-Condition Environmental Seal: Rugged submersible lower shaft construction enables uninterrupted ferrous metal locating inside muddy ditches and shallow water.

What's Included

  • (1) CST Berger Magna-Trak 200 Magnetic Locator (19-200SC)
  • (1) Soft Padded Utility Carrying Case

Technical Specifications

Specification Value
Brand Name CST Berger
Model Number 19-200SC (MT200)
Device Category Type Magnetic Locator
Maximum Detection Depth 15 ft.
Assembled Tool Weight 4.74 lbs.
Target Materials Recognized Ferrous Metals Only (Iron and Steel)
Battery Operating Life Up to 100 Hours Continuous
Signal Feedback Display Digital LCD with Numeric Scale & Bar Graph
Housing Material Class Professional-Grade Engineered Plastic
Package Depth 21.12 in.
Package Height 1.92 in.
Total Packaged Weight 11.11 lbs.
Power Line Indication Yes (Visual LCD Alarm)
Commercial Warranty 1 Year Limited (2 Years with Registration)

Pro-Tip: When surveying paths over structural steel reinforcing mesh or road-bed hardware, use the manual sensitivity dials to lower the tool gain. This isolates the distinct localized peaks of deeper pipes or corner pins from the broad baseline readings of surface reinforcing grids.
