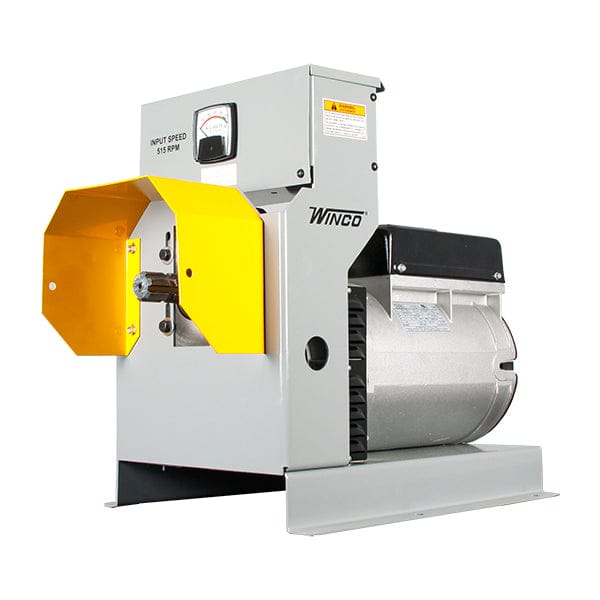

Starting at 50,000 standby watts, this 50PTO is single phase with a 540RPM gearcase.
Rugged Design
- Low Harmonic Distortion
- Frequency Meter
- Premium Circuit Breakers
- Protective PTO Shield
- 5-Wire Anderson Full Power Plug Included
- 100 % Load Tested
SPECIFICATIONS
- Continuous Watts 40,000
- Amps 166
- Output 120/240 V
- Phase Single
- PTO Input Speed 540 rpm
- Input Shaft Size 1 3/8" - 6 Spline
- Required Input 100 HP
- Motor Starting 20 HP
- Voltmeter Yes
- Main Circuit Breaker 200 Amp
- Neutral Bonded Yes
- Ground Lug Yes
- Gearcase Oil SAE 85W 90-140
- Gearcase Oil Capacity 16 oz
- Voltage Regulation +/- 1%
- Total Harmonic Distortion < 5%
- Generator Speed 1800 rpm
- 120 Volt Receptacles (2) NEMA 5-20 20A
- 240 Volt Receptacles (1) NEMA 6-50 50A
- Full Power Anderson Receptacle 350 AMP
- Full Power Anderson Plug Included
- Dimensions 44” x 28” x 29”
- Weight 745 lbs

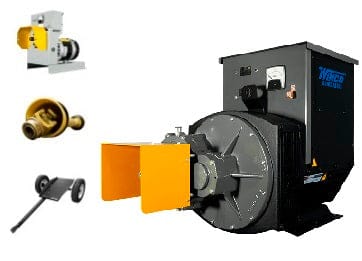

INCLUDES
- PTO Generators
- Shaft
- Trailer
CALL FOR AVAILABILITY AND SHIPPING OPTIONS.
