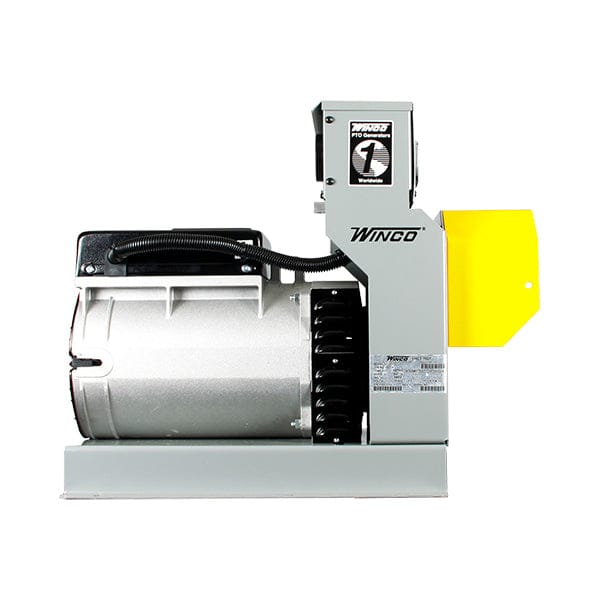

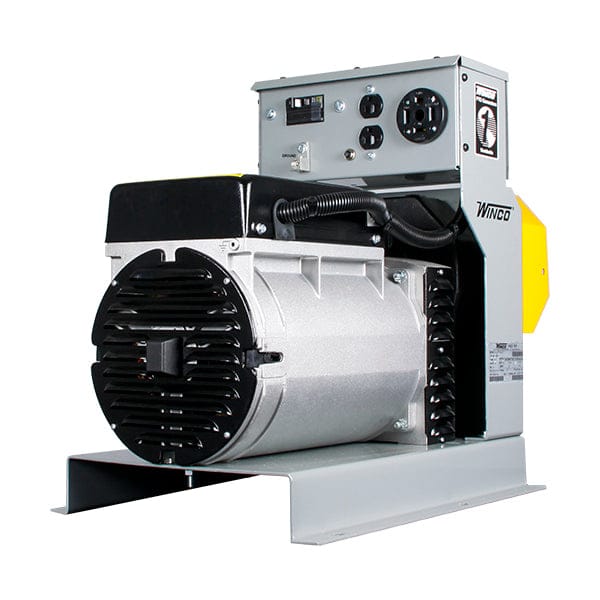

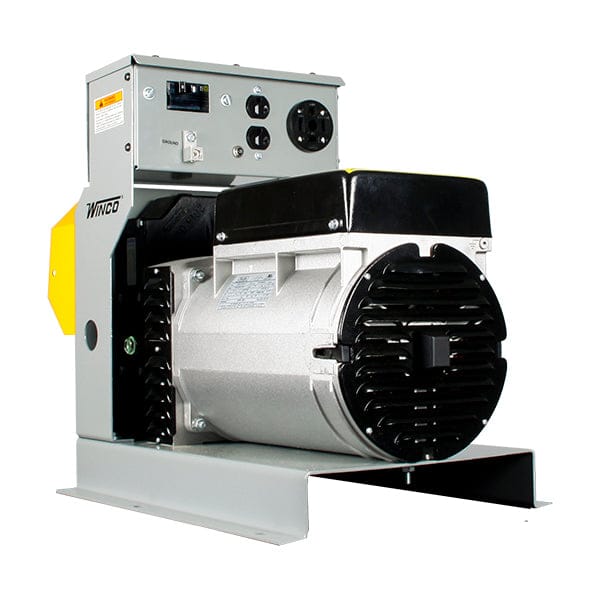

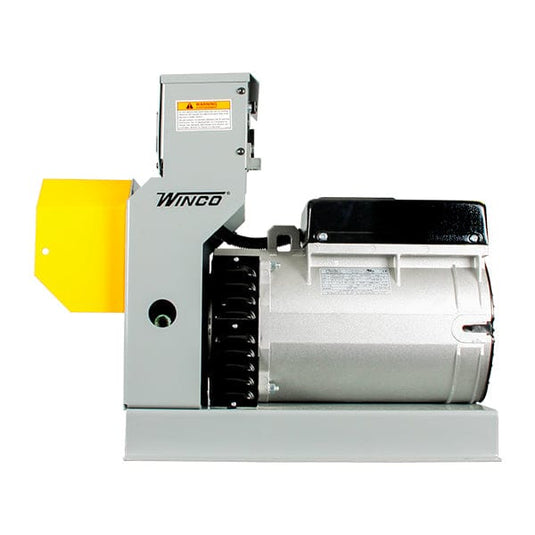

Starting at 15,000 standby watts, this W15PTOS is a single phase, 120/240V generator with a 515RPM gearcase.
FEATURES
- Low Harmonic Distortion
- Compact Design
- Cast Iron Gearcase with Helical Gears
- Voltmeter
- Premium Circuit Breakers

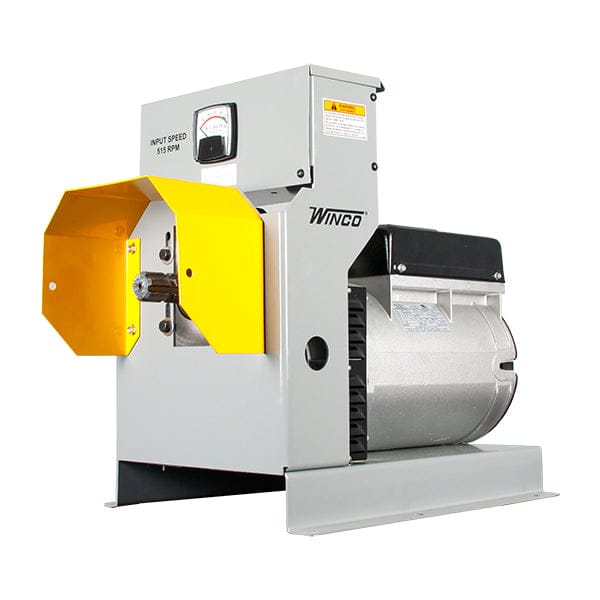

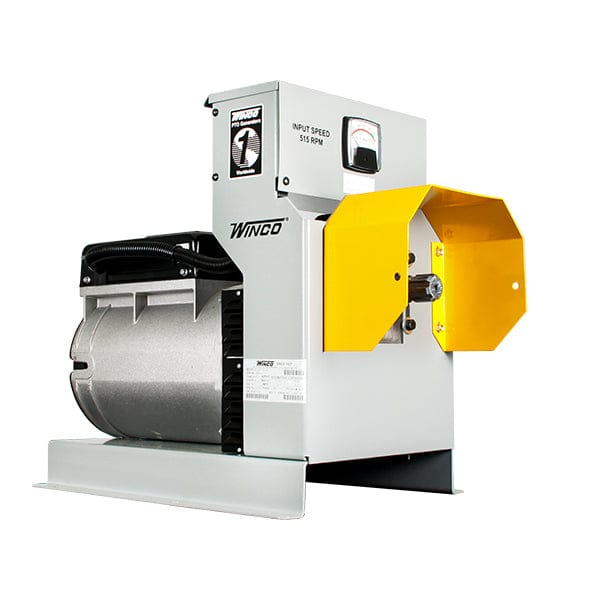

- Protective PTO Shield
- 60 Amp NEMA 14-60 Full Power Plug Included
- 100% Load Tested
SPECIFICATIONS
- Continuous Watts 15,000
- Amps 5
- Output 120/240 V
- Phase Single

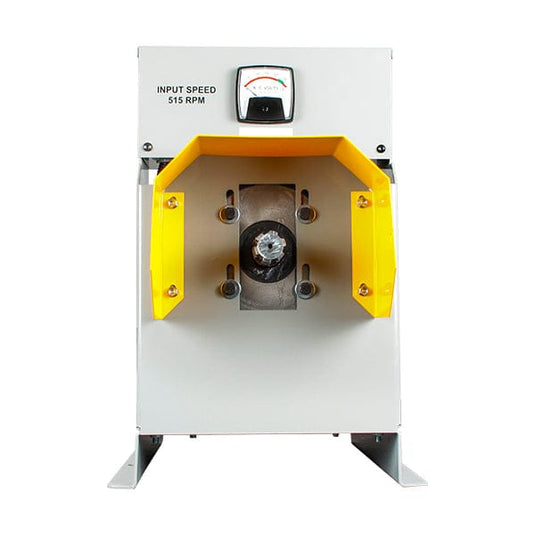

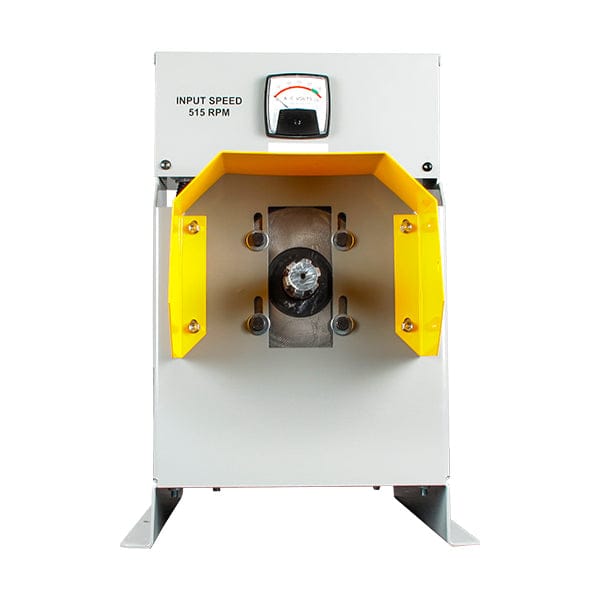

- PTO Input Speed 515 rpm
- Input Shaft Size 1 3/8" - 6 Spline
- Required Input 30 HP
- Motor Starting 5 HP
- Voltmeter Yes
- Main Circuit Breaker 60 Amp
- Neutral Bonded Yes
- Ground Lug Yes
- Gearcase Oil SAE 85W 90-140
- Gearcase Oil Capacity 16 oz
- Voltage Regulation +/- 5%
- Total Harmonic Distortion < 5%
- Rating 125° C
- Type 2 Pole Revolving Field
- Brushless Yes
- Generator Speed 3600 rpm
- Voltage Control Capacitor
- Insulation Class H

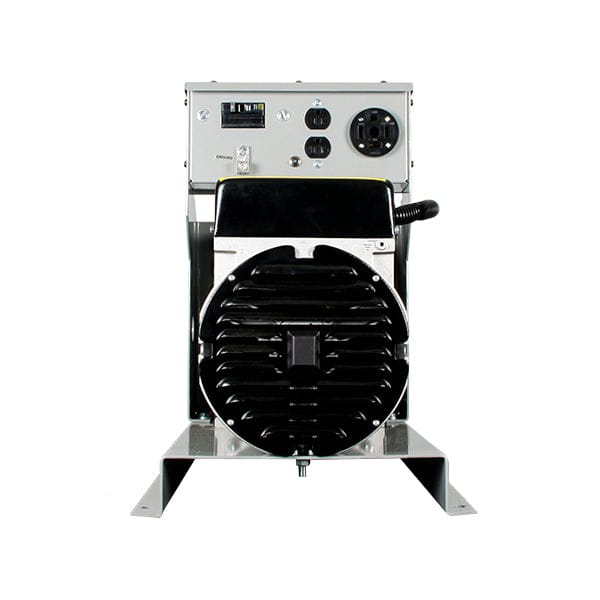

- 120 Volt Receptacles (2) NEMA 5-20 20a Duplex
- 120/240 Volt Receptacles (1) NEMA 14-60 60a
- Dimensions 1” x 14.5” x 20.6”
- Weight 242 lbs
INCLUDES
- PTO Generators
- Shaft
- Trailer
CALL FOR AVAILABILITY AND SHIPPING OPTIONS.
