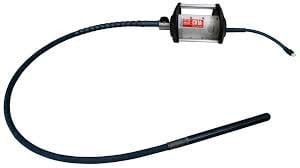

Multiquip CV1A Concrete Vibrator

  • Sale
  • Regular price $899.00


Designed for pencil head vibrators, up to 1-1/16" in diameter, this heavy-duty motor is designed for the rigors of the job site. Multiquip flex-shaft vibrators are designed for work in medium to high-slump concrete. Typical applications include small pours, slabs, driveways, stem walls and footings.



FEATURES

  • Large vibration isolated handles protect the motor and operator
  • UL compliance testing to USA and Canadian standards for product confidence
  • Strain relief prevents power cord pullouts
  • Quick-disconnect knob for easy shaft removal
  • Cassette style motor improves durability and performance by minimizing friction and enabling the motor to maintain optimum RPM
  • Flow through ventilation reduces contamination by taking in air from the rear of the motor
  • Flexible shafts available in lengths from 2 to 21 feet
  • Ideal for steel vibrator heads available from 7/8" to 1-1/16" diameter

SPECIFICATIONS

  • 10 Amps
  • Voltage / Frequency 115v 50/60 Hz
  • HP 1  kW 1.2
  • RPM 16,000
  • Weight 11 lbs
  • Required Shaft FSN
  • Plug NEMA 5-15P

 INCLUDES

  • CV1A Vibrator Motor
  • FS10 10’ Flexibe Shaft

Call For Availability And Shipping Options.
