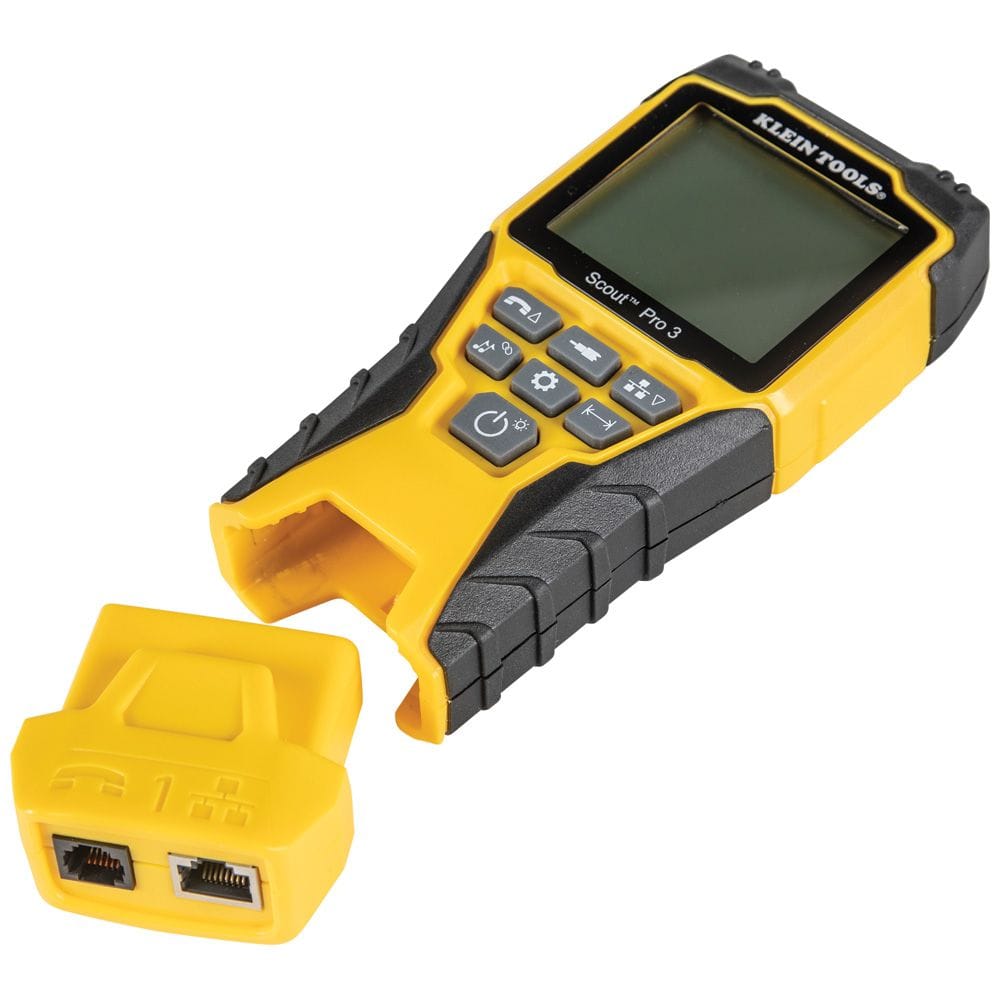

Klein Cable Tester Kit with Scout® Pro 3 Tester, Remotes, Adapter, Battery VDV501-851

Klein ToolsSKU: VDV501-851

Price:
$99.95
Stock:
In stock

Description

  • Cable tester tests voice (RJ11/12), data (RJ45) and video (coax F-connector) terminated cables with clearly defined results
  • Measure cable length up to 2000 feet (610 m)
  • Test for Open, Short, Miswire or Split-Pair faults
  • Backlit LCD screen displays cable length, wiremap, cable ID and test results
  • Trace cables, wire pairs and individual conductor wires with multiple style tone generator (requires analog probe Cat. No. VDV500-123; sold separately)
  • Hub blink mode to identify port location on a hub or a switch
  • LanMap™ and CoaxMap™ Location Remotes (5 each) map and ID multiple cable runs in a single step
  • Includes voltage warning, shield detection, auto power off, low battery indicator and a self-storing remote
  • Auto Power-off feature to conserve battery life (9V included)

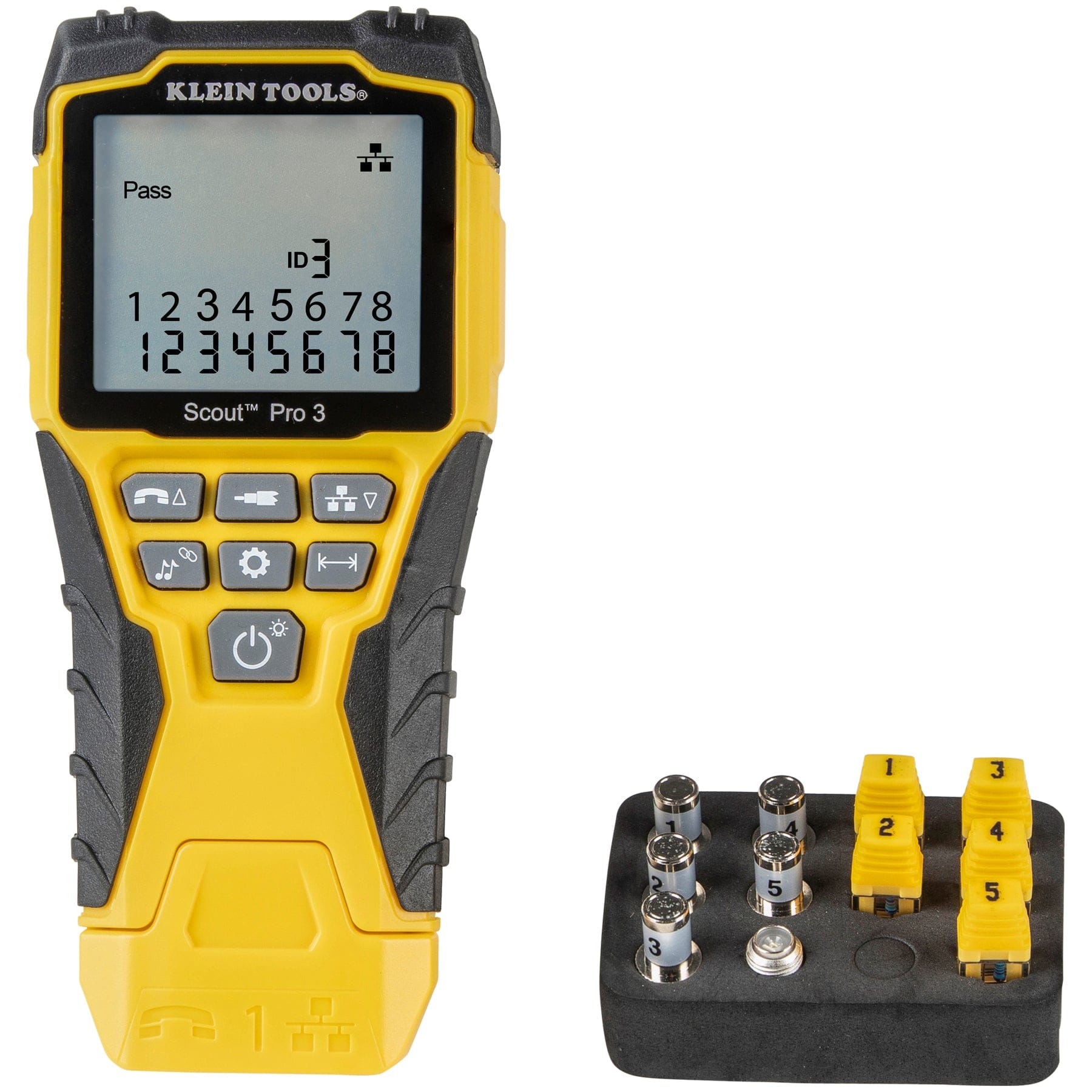

  • Kit includes: Scout® Pro 3 Tester, (1) self-storing remote, (5) LanMap™ RJ45 locator remotes, (5) CoaxMap™ F-connector locator remotes, (1) coax F-connector, manual and 9V battery
Specifications
Type:
Twisted Pair, DATA, Voice, LAN, and Coaxial
Application:
Cable Testing
Special Features:
Measures Cable Length; Backlit LCD; Hub Blink
Cable Type:
DATA:, Shielded or Unshielded, CAT3, CAT5E, CAT6, CAT6A, CAT7; COAXIAL: RG59, RG6/6Q
Overall Length:
7'' (17.8 cm)
Overall Height:
3'' (7.6 cm)
Overall Width:
1.25'' (3.2 cm)
Material:
Plastic and Metal
Test-n-Map ID Remotes:

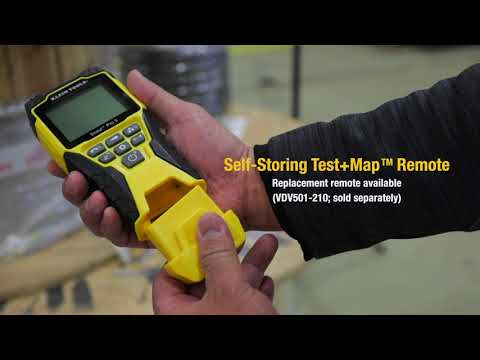

(1) Self-Storing
Location ID:
(5) RJ45 Data and (5) F-Coax connector Locator Remotes
Batteries:
9V Alkaline
Battery Life:
50 Hours Active
Drop Protection:
2 m
Supported Remotes:
18
Connection & Adapter Types:
RJ11, RJ12, RJ45, Coax F
Display:
Backlit LCD
Multiple Style Tone Generator:
Yes (5); Requires Tracing Probe (Cat. No. VDV500-123); Sold Separately
Faults Detected:
Open, Short, Miswire
Test & Measure Types:
Ethernet / Data and Coaxial
Included:
Tester, Self-Storing Remote, (5) LanMap RJ45 Locator Remotes, (5) CoaxMap F-connector Locator Remotes, (1) Coax F-adapter, Manual, (1) 9V Battery
Standard:
CE
Weight:
1.2 lb (0.5 kg)
UPC:
092644692260
