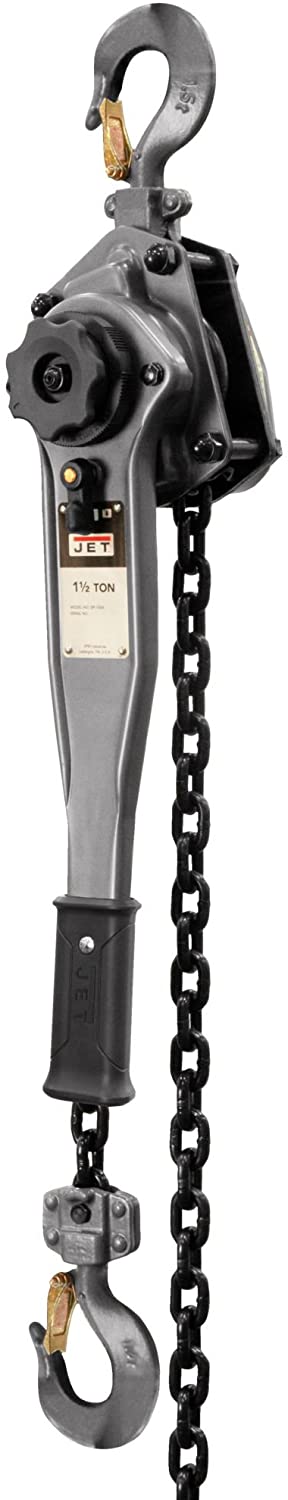

Jet JLP-150A-15 JLP-A Series 1-1/2 Ton Lever Hoist, 15' Lift

  • Sale
  • Regular price $299.00
  • 1 available


DESCRIPTION

JET® JLP-A Series lever hoists combine safety, reliability, and durability that are designed to perform in light to medium-duty industrial applications. The patented Brake Wear Indicator increases safety by letting you know when to replace the friction disks. JET® also offers the option of shipyard hooks, virtually eliminating stretched hooks caused by point or tip loading. The JET® JLP-A lever hoist is available in ¼ ton to 6 ton capacities with standard lifts of 5, 10, 15, and 20 feet (custom lifts available). The JET® JLP-A Series is the perfect choice for a contractor grade lever hoist.

FEATURES

  • Safety
  • NEW! Innovative brake wear indicator provides a visual indication when the friction disks are worn and need replacing
  • NEW! JET’s improved easy free chain design is a two-step, no load, free chaining system. The system permits quicker hoist positioning and take up of slack chain, and is engineered not to free chain under load
  • The Weston style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security and increased safety
  • Industrial rated alloy steel hooks rotate 360 degrees for easy rigging and slowly stretch to indicate an overload situation
  • NEW! Redesigned ergonomic grip allows for greater operator control and increased comfort
  • Durability
  • Secured with Allen screws and lock nuts, the cast-steel safety latches are more durable than stamped steel latches and will not bend out of compliance with lifting regulations
  • Optional Shipyard Hook are blunt tip hooks, designed for point loading and virtually eliminate stretched hooks, reducing downtime for maintenance and repair
  • Grade 80 black oxide coated load chain for added durability
  • Needle bearings support the load sheave to increase efficiency and promote smooth operation
  • Impact resistant all steel construction for added durability and protection
  • Standards
  • This product complies with ANSI / ASME B30.21 and HST-3 Standards
  • Load tested to 125% of capacity with certificate

SPECIFICATIONS

  • Load Capacity (Tons)1-1/2
  • Lift (Ft.)15
  • Overload ProtectionNo
  • Ship Yard HooksNo
  • Headroom (In.)15
  • Handle Length (In.)16-1/7
  • Lever Pull Force (LBF)49
  • Lift per Turn (In.)7/8
  • Number of Falls1
  • Load Chain Dimensions (Mm.)8 x 24
  • Hook Throat Opening (In.)1-6/7
  • Overall Width (In.)6-7/9
  • Weight (Lbs.)31
