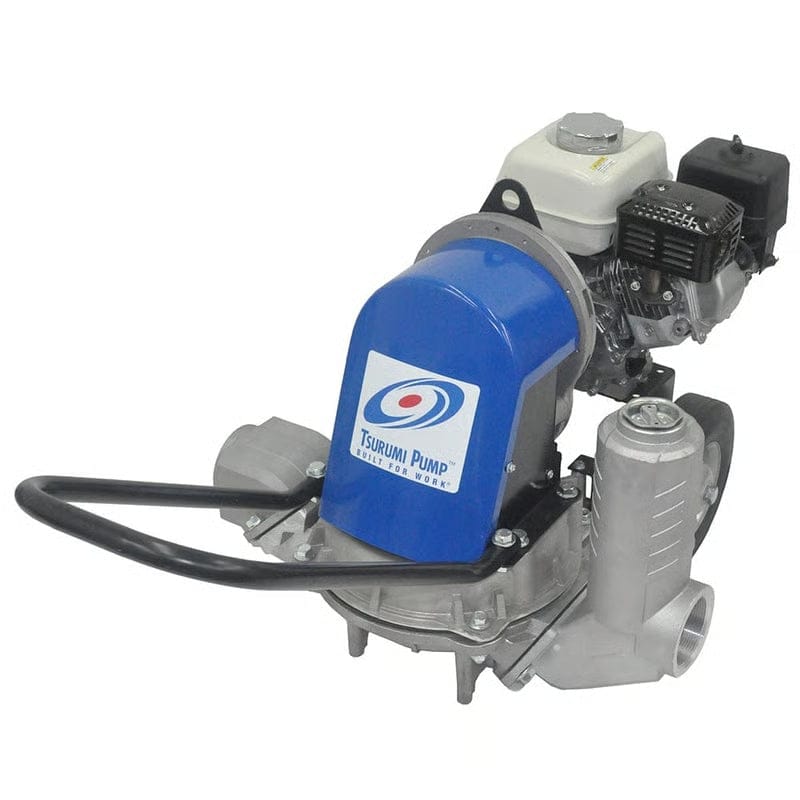

TD6 series of diaphragm pumps are capable of continuous dry operation for seepage dewatering. Handles sand, mud and sludge
- Sand cast aluminum construction for portability and durability
- Thermoplastic rubber diaphragm
- 3-inch NPT suction and discharge size
- 1-5/8 inch diameter solids handling capability
- Modular component design permits easy maintenance and cleanout
- Engine driven model: Honda GX120
- Delivers up to 90GPM
- Maximum temperature 180˚F
- Discharge Size 3”
- Engine Honda GX120
- Motor Output 4 HP / 3600 rpm
- Dimensions L x W x H 43” x 20” x 23”
- Weight 1750 lbs.
Contact for Availability And Shipping Options.
